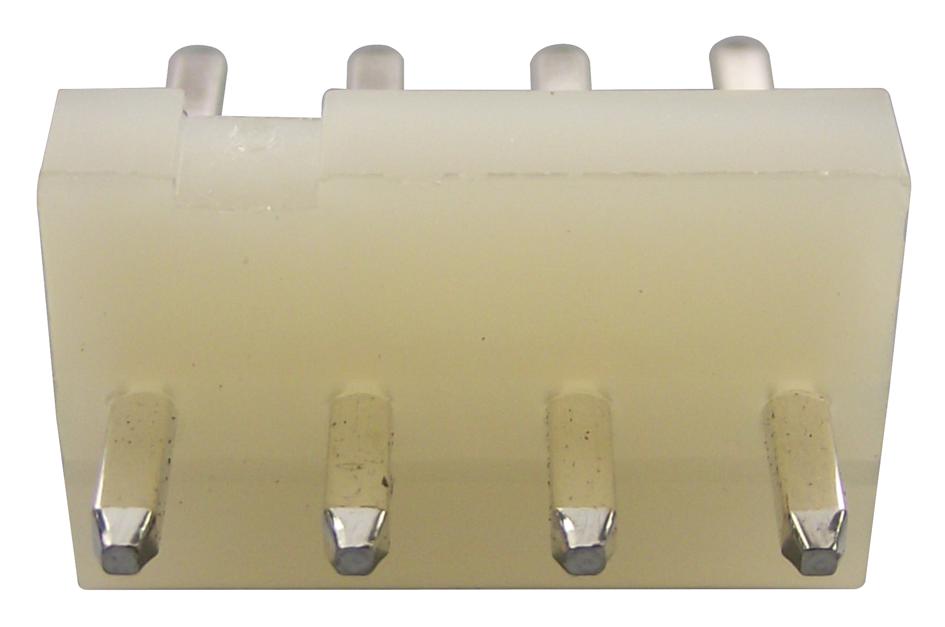

MOLEX 9652088 KK 396 Wire-to-Board Header
The MOLEX 96-52-088 is a component of the 5273 series, specifically a KK 396 Wire-to-Board Header. This header is designed for reliable wire-to-board connections and features a vertical orientation with a friction lock mechanism. Constructed with a brass body, tin plating on both mating and termination interfaces, and a nylon resin, it offers durability and good electrical performance. It is suitable for power applications and is commonly used in various industrial and consumer electronic devices. The header supports a maximum current of 7.0A and a maximum voltage of 250V, making it a versatile choice for a wide range of applications.
MOLEX 9652088 KK 396 Wire-to-Board Header Specifications:
- product_family: PCB Headers
- series: 5273
- application: Power, Wire-to-Board
- overview: KK Interconnect System - Molex
- product_name_full: KK 396, SPOX
- circuits_loaded: 8
- circuits_maximum: 8
- color_resin: Natural
- durability_mating_cycles: 30
- first_mate_last_break: No
- flammability: 94V-2
- glow_wire_compliant: No
- guide_to_mating_part: None
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 2753.700/mg
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.60mm
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended: 1.60mm
- packaging_type: Bag
- pitch_mating_interface: 3.96mm
- pitch_termination_interface: 3.96mm
- plating_min_mating: 5.080µm
- plating_min_termination: 5.080µm
- polarized_to_pcb: No
- shrouded: Partial
- stackable: No
- surface_mount_compatible: No
- temperature_range_operating: -40°C to +105°C
- termination_interface_style: Through Hole
- current_maximum_per_contact: 7.0A
- voltage_maximum: 250V
- engineering_number: 5273-08A
- upc: 800753613720
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Green Image
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
