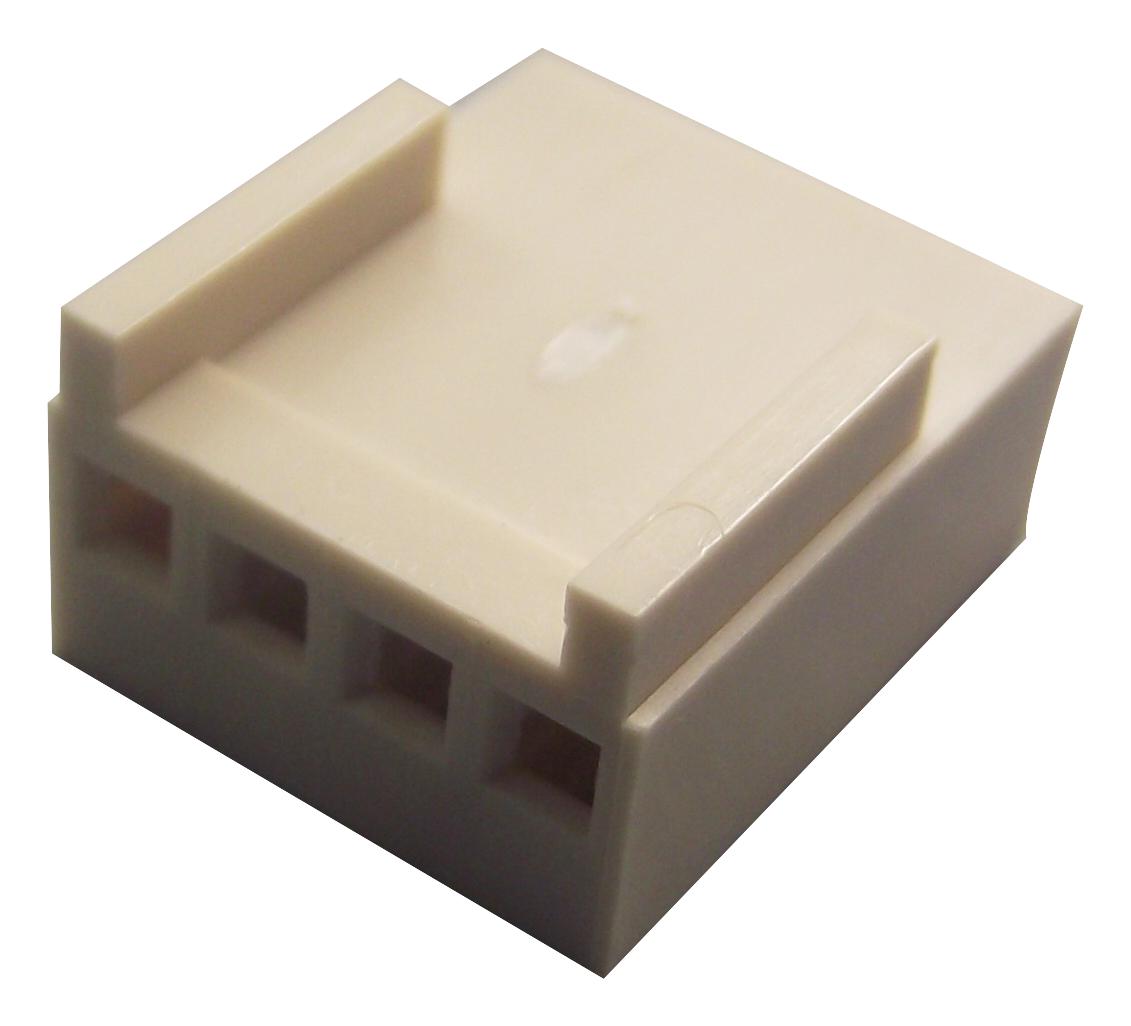

MOLEX 22011082 Wire-to-Board Connector
The Molex KK Interconnect System features a 2.50mm pitch wire-to-board housing suitable for 2759 and 5159 crimp terminals, offering reliable electrical connections. It is constructed with flame-retardant nylon resin rated at UL 94V-0, capable of operating in temperatures from -40°C to +105°C. Designed with a friction lock for secure mating, this 8-circuit female receptacle is panel mountable, stackable, and available in natural color. This RoHS-compliant, halogen-free connector ensures durability and safety for a wide range of electronic applications.
MOLEX 22011082 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 2.50mm
- Number of Circuits: 8
- Material - Resin: Nylon
- Flammability: UL 94V-0
- Operating Temperature Range: -40°C to +105°C
- Color - Resin: Natural
- Gender: Receptacle
- Panel Mount: Yes
- Stackable: No
- Glow-Wire Capable: No
- Net Weight: 1002.700 mg
- Packaging Type: Bag
- Certifications: UL Listed, RoHS Compliant, Halogen-Free
- Application: Wire-to-Board connections in electronic devices
- Agency Certification: UL
- Reference Drawing Number: 5051-08
- Use With: 2759, 5159 crimp terminals
Buy the Buy Molex KK Interconnect System Part Number 22011082 Online
Purchase the Molex KK wire-to-board connector with 2.50mm pitch, 8 circuits, natural nylon construction, UL 94V-0 flammability rating, and operating temperature range of -40°C to +105°C. This durable, RoHS-compliant, halogen-free connector offers secure friction lock, panel mountability, and compatibility with 2759 and 5159 crimp terminals. Perfect for electronic, industrial, and consumer applications, it ensures reliable performance and safety in various environments, making it an essential component for modern circuit assemblies.
Order your Molex Series5051 22011082 wire-to-board connector today and ensure reliable, safe electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 22011082?
You can click on the BUY or RFQ button to purchase 22011082 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 22011082?
You can download the 22011082 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 22011082?
MOLEX
