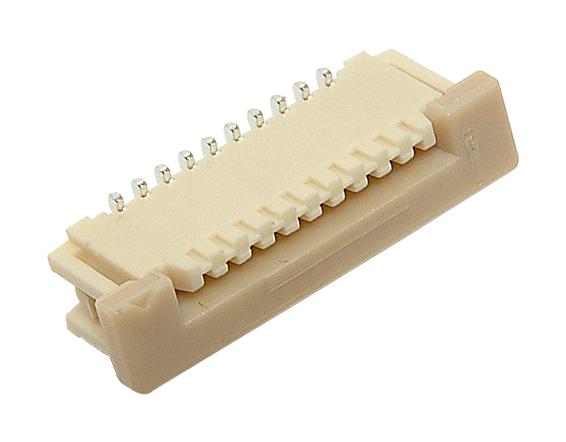

MOLEX 526102833 FFC FPC Connector
The Molex Easy-On FFC/FPC Connector with 1.00mm pitch is designed for reliable and efficient flat flexible cable connections. Featuring a slider series for easy mating, it supports 28 circuits in a vertical orientation with a height of 5.75mm. Constructed from phosphor bronze with silver and tin-bismuth plating, it complies with RoHS and UL standards. The connector operates within a temperature range of -40°C to +85°C, has a maximum current of 1.0A per contact, and offers robust surface mount PCB retention with a mated height of 5.75mm, making it suitable for space-conscious electronic assemblies.
MOLEX 526102833 FFC FPC Connector Specifications:
- Pitch: 1.00mm
- Circuits: 28
- Height: 5.75mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Silver, Tin-Bismuth
- Material - Plating Termination: Silver, Tin-Bismuth
- Flammability: UL 94V-0
- Temperature Range: -40°C to +85°C
- Current - Maximum per Contact: 1.0A
- Orientation: Vertical
- Packaging: Embossed Tape on Reel
- Mated Height: 5.75mm
- PCB Mounting: Surface Mount
- Actuator Type: Slider
- Color - Resin: Natural
- Net Weight: 1249.900 mg
- Durability (mating cycles max): Not specified
- RoHS: Compliant
- UL/CSA: Certified
- Voltage Maximum: 125V
- Connector Type: FFC-FPC
Buy the Buy Molex FFC-FPC Connector Part Number 526102833 Online
Enhance your electronic assemblies with the Molex FFC FPC Connector. Designed for space-saving flexible cable connections, it features a 1.00mm pitch, 28 circuits, and a vertical slider for easy mating. Constructed with durable materials and RoHS compliant, this connector supports operation from -40°C to +85°C, providing reliable electrical performance at 1.0A per contact. Ideal for compact electronic devices, it ensures fast installation and secure connections for a wide range of applications.
Order your Molex Series52610 FFC-FPC Connector part number 526102833 today and ensure secure, reliable flexible cable connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 526102833?
You can click on the BUY or RFQ button to purchase 526102833 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 526102833?
You can download the 526102833 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 526102833?
MOLEX
