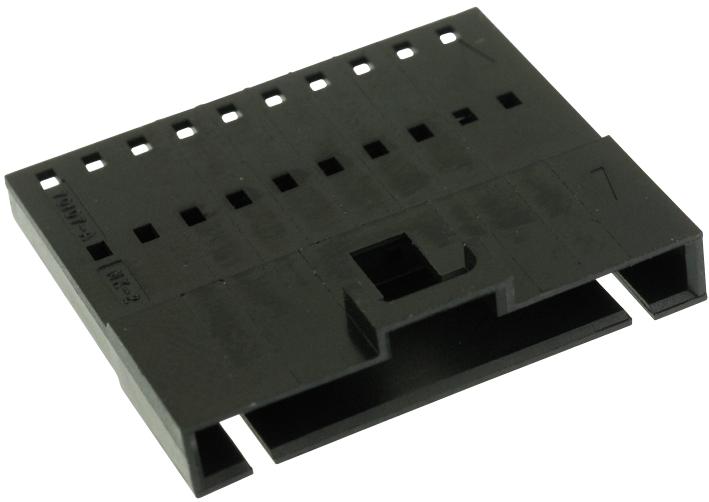

MOLEX 701070017 SL Modular Crimp Housing
The MOLEX 70107-0017 is a versatile wire-to-wire crimp housing within the SL Modular Connectors series. Designed with 18 circuits and a black polyester resin body, this housing provides a robust and reliable connection solution. It's ideal for applications requiring a single-row configuration and is compatible with specific crimp terminals and mating housings, ensuring a secure and efficient electrical connection. The housing's design incorporates features like polarization and a locking mechanism for enhanced reliability and ease of assembly.
MOLEX 701070017 SL Modular Crimp Housing Specifications:
- Status: Active
- Overview: SL Modular Connectors
- Description: SL Wire-to-Wire Crimp Housing, Single Row, Version A, without Mounting Ears, 18 Circuits, Black
- Product Family: Crimp Housings
- Series: 70107
- Application: Signal, Wire-to-Wire
- Circuits (maximum): 18
- Color - Resin: Black
- Flammability: 94V-0
- Gender: Plug
- Glow-Wire Capable: No
- Lock to Mating Part: Yes
- Material - Resin: Polyester
- Net Weight: 3.085/g
- Number of Rows: 1
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 2.54mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- UPC: 800755028973
- Mates With: 70066, 70400, 70430
- Use With: 70021
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
