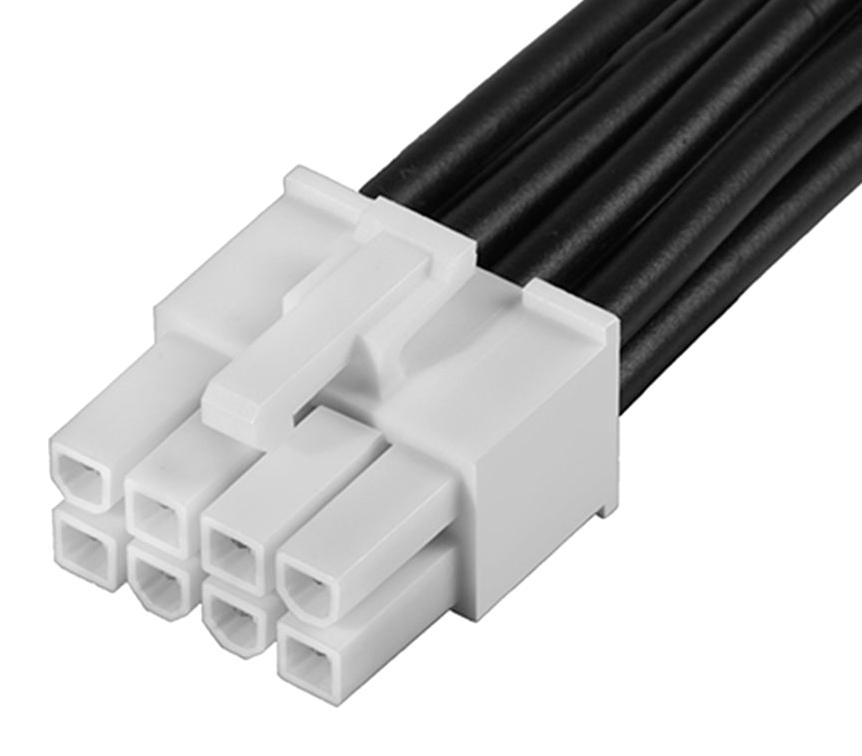

MOLEX 2153271082 Mini-Fit Jr. Cable Assembly
The MOLEX 215327-1082 is a Mini-Fit Jr. male-to-male off-the-shelf cable assembly, ideal for power and wire-to-wire applications. It boasts a dual-row configuration, 8 circuits, and a 300mm length, providing a robust and versatile solution for various industrial and commercial uses. The tin plating on both mating and termination interfaces ensures excellent conductivity and corrosion resistance, while the nylon resin material offers durability and insulation.
MOLEX 2153271082 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 300.00mm
- circuits_loaded: 8
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight_g: 61.833
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264590346
- material_info: Reference - Drawing Numbers Sales Drawing 2153271081-000
- mates_with: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit Jr. TPA Cable Assembly 45135, Mini-Fit Jr. Cable Assembly 245135
