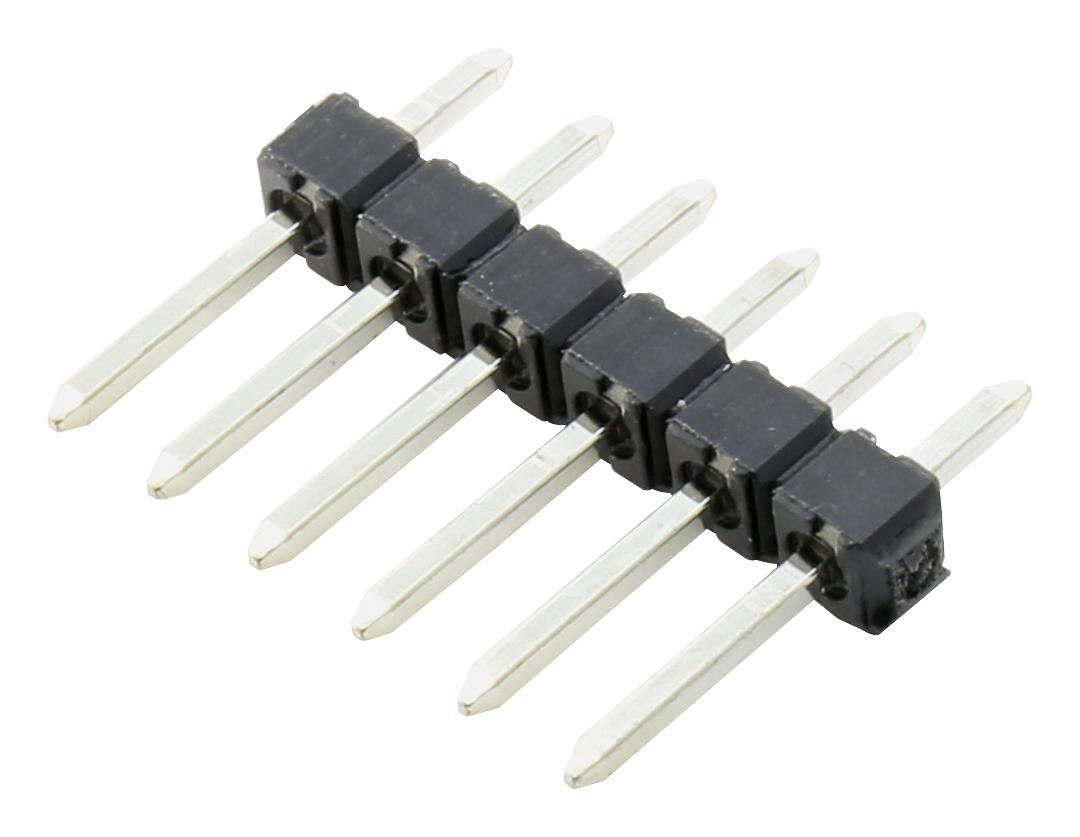

MOLEX 22284065 KK 254 Breakaway Header
The MOLEX 22-28-4065 KK 254 Breakaway Header is a versatile interconnect solution designed for board-to-board and wire-to-board applications. This header features 6 circuits in a vertical orientation, offering a compact and efficient connection. The gold selective plating on the mating interface ensures reliable signal transmission and durability. Its breakaway design simplifies assembly and allows for easy disconnection. Suitable for a wide range of industrial applications requiring robust and reliable connectivity, this header is a key component in many electronic systems.
MOLEX 22284065 KK 254 Breakaway Header Specifications:
- Product Family: PCB Headers
- Series: 42375
- Application: Board-to-Board, Signal, Wire-to-Board
- Circuits (Loaded): 6
- Circuits (maximum): 6
- Color - Resin: Black
- Durability (mating cycles max): 100
- First Mate / Last Break: No
- Flammability: 94V-0
- Glow-Wire Capable: No
- Guide to Mating Part: None
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.397/g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.05mm
- PCB Locator: No
- PCB Retention: None
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Polarized to Mating Part: No
- Polarized to PCB: No
- Shrouded: No
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: See Product Specification
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 500V
- Duration at Max. Process Temperature (seconds): 005
- Lead-freeProcess Capability: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 260
- Engineering Number: A-42375-0251
- UPC: 800754255967
