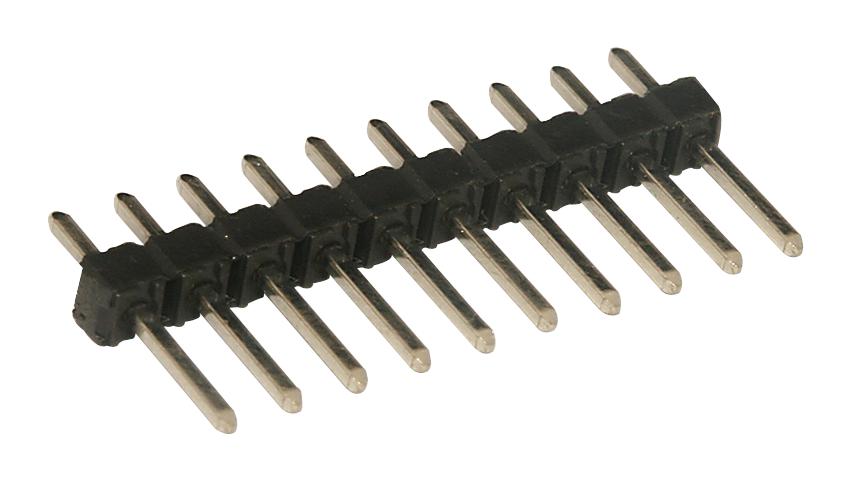

MOLEX 22284180 KK 254 Breakaway Header
The MOLEX 22-28-4180 KK 254 Breakaway Header is a versatile component for interconnect systems. Designed with 18 circuits and a vertical orientation, it's ideal for board-to-board and wire-to-board applications. The tin plating ensures excellent solderability and corrosion resistance, while the breakaway design simplifies assembly and maintenance. This header is compatible with KK Crimp Housings and offers a robust solution for various industrial and commercial applications.
MOLEX 22284180 KK 254 Breakaway Header Specifications:
- Product Family: PCB Headers
- Series: 42375
- Application: Board-to-Board, Signal, Wire-to-Board
- Circuits (Loaded): 18
- Circuits (maximum): 18
- Color: Black
- Durability (mating cycles max): 25
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.18mm
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 500V
- Duration at Max. Process Temperature (seconds): 005
- Lead-freeProcess Capability: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 235
- Engineering Number: 42375-0018
- Mates With: KK Crimp Housing, 2695, 6471, 7880, KK PC Board Connector
