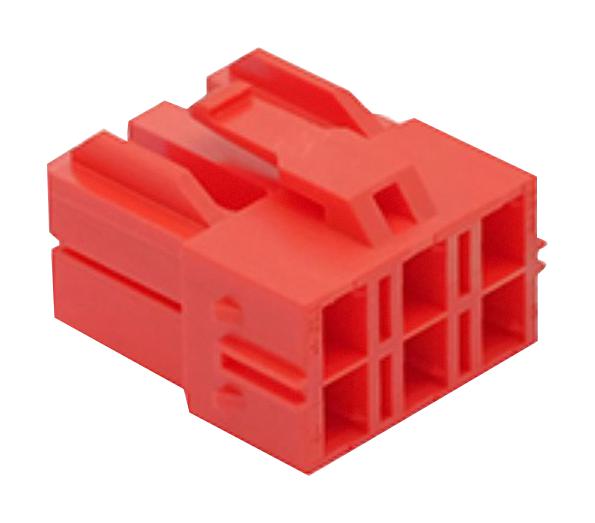

MOLEX 1510492609 CP-6.5 Receptacle Housing
The MOLEX 151049-2609 CP-6.5 receptacle housing is a critical component in wire-to-board connector systems. Designed with a 6.50mm pitch and dual-row layout, it accommodates 6 circuits and provides a polarized, positive lock feature for reliable mating. Constructed from PBTP resin, this housing offers good mechanical strength and chemical resistance. It is commonly used in automotive, industrial, and consumer electronics applications where secure and efficient wire-to-board connections are required. The housing is RoHS compliant and operates effectively within a temperature range of -40°C to +105°C, ensuring consistent performance in various environments.
MOLEX 1510492609 CP-6.5 Receptacle Housing Specifications:
- overview: CP-6.5 Wire-to-Board Connector System
- description: CP-6.5 Receptacle Housing, 6.50mm Pitch, Dual Row, Polarized, Positive Lock, 6 Circuits, Red
- series: 151049
- application: Wire-to-Board
- upc: 889056065924
- circuits_maximum: 6
- color_resin: Red
- flammability: 94V-0
- gender: Female
- glow_wire_compliant: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: PBTP
- net_weight_g: 2.653
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 6.50
- pitch_termination_interface_mm: 6.50
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40°C to +105°C
- current_maximum_per_contact_a: 10.0
- lead_free_process_capability: N/A
- eu_rohs: Compliant
- china_rohs: Green Image
- halogen_free_status: Not Low-Halogen
- mates_with: CP-6.5 Headers 151048-1609
- use_with_wire_awg: 16-22 AWG, 20-26 AWG
