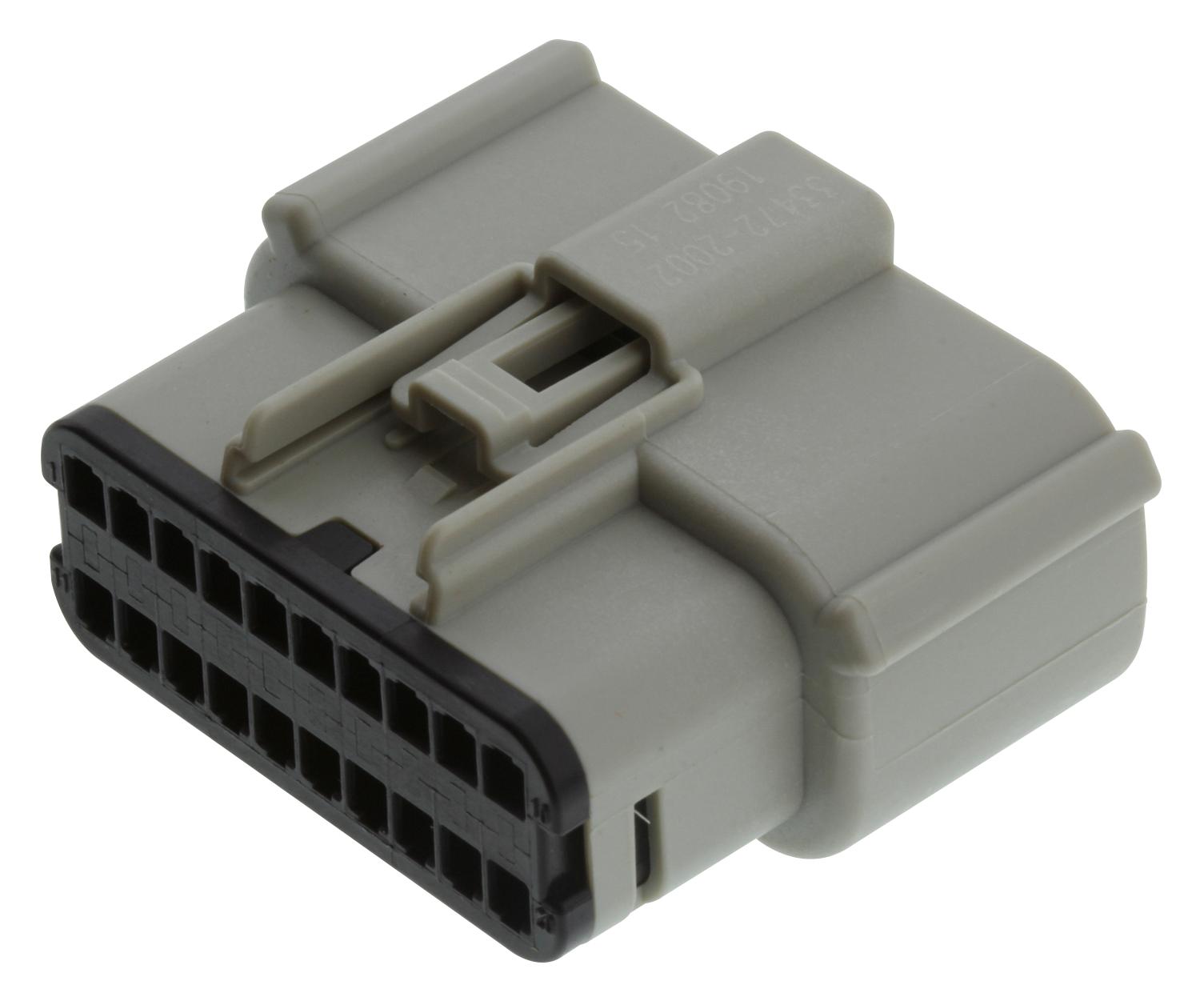

MOLEX 334722002 Sealed Female Connector
The MOLEX 33472-2002 is a robust sealed female connector within the MX150 series, designed for demanding wire-to-board and wire-to-wire applications. It accommodates a maximum of 20 circuits and incorporates polarization B for secure mating. Constructed with a light gray modified polystyrene resin, this connector offers excellent durability and resistance to environmental factors. Its design includes features like polarization to the mating part and a lock to the mating part, ensuring a reliable connection. It is RoHS compliant and operates effectively within a temperature range of -40°C to +125°C, making it suitable for a wide range of industrial environments.
MOLEX 334722002 Sealed Female Connector Specifications:
- status: Active
- series: 33472
- description: MX150 Sealed Female Connector, Dual Row, 20 Circuits, Polarization B
- circuits_maximum: 20
- color: Light Gray
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material: Modified Polystyrene
- net_weight_g: 21.360
- number_of_rows: 2
- packaging_type: Individual Cell Panel Mount
- pitch_mating_interface: 3.50mm
- polarized_to_mating_part: Yes
- stackable: No
- operating_temperature_range: -40°C to +125°C
- lead_free_process_capability: N/A
- elv_compliant: Yes
- china_rohs: Not Relevant
- rohs_compliant: Yes
- phthalates: Not Contained
- halogen_free_status: Not Relevant
- mates_with: MX150 Male Sealed Connector, MX150 Right-Angle Header
- use_with: MX150 Female Terminal, MX150 Cavity Plug Sealed, MX150 Backshell
- application_specifications: AS-33472-100-001, AS-33611-001-001
- packaging_specifications: PK-31300-903-001, PK-33472-001-001
- product_specification: PS-33472-000-001
- sales_drawing: SD-33472-0001-001, SD-33472-0002-002
