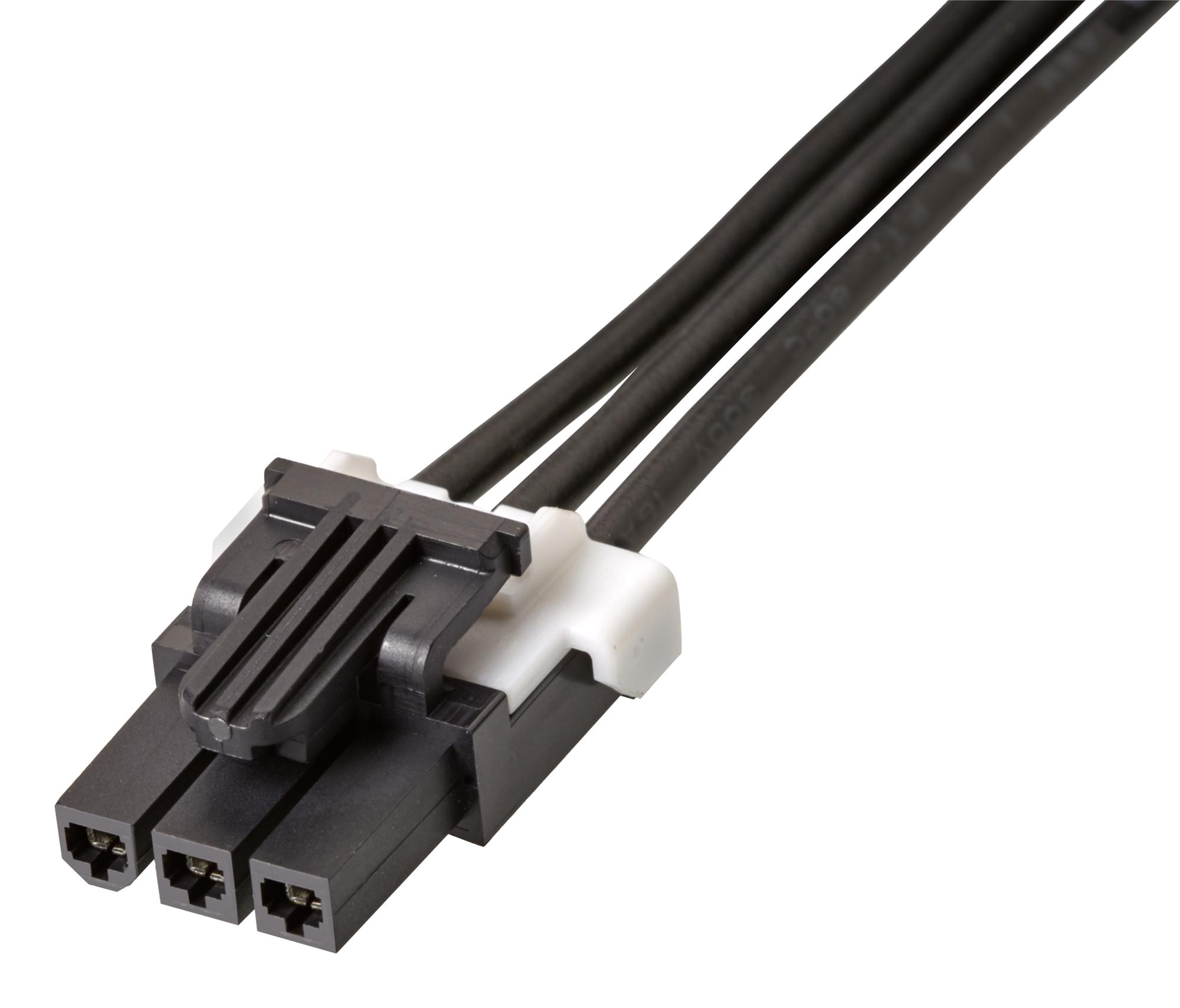

MOLEX 1451350301 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0301 is a Mini-Fit TPA2 to Mini-Fit TPA2 off-the-shelf (OTS) cable assembly designed for reliable power and signal transmission. This assembly offers a convenient, pre-terminated solution for wire-to-board and wire-to-wire applications, reducing assembly time and ensuring consistent performance. The black nylon resin overmold provides enhanced protection and durability, making it suitable for demanding industrial environments. It is RoHS compliant and features a phosphor bronze material with tin plating for optimal conductivity and corrosion resistance.
MOLEX 1451350301 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- description: Mini-Fit TPA2-to-Mini-Fit TPA2 Off-the-Shelf (OTS) Cable Assembly, Single Row, 150.00mm Length, 3 Circuits, Black
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2 Both Ends
- overmolded: No
- cable_length: 150.00mm
- circuits_loaded: 3
- color_resin: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 11.908/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_maximum_per_contact: 11.0A
- voltage_maximum: 600V AC/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with_housing: 200471, 200488, 5559, 5566, 5569
- drawing_number: 4000095327-000
