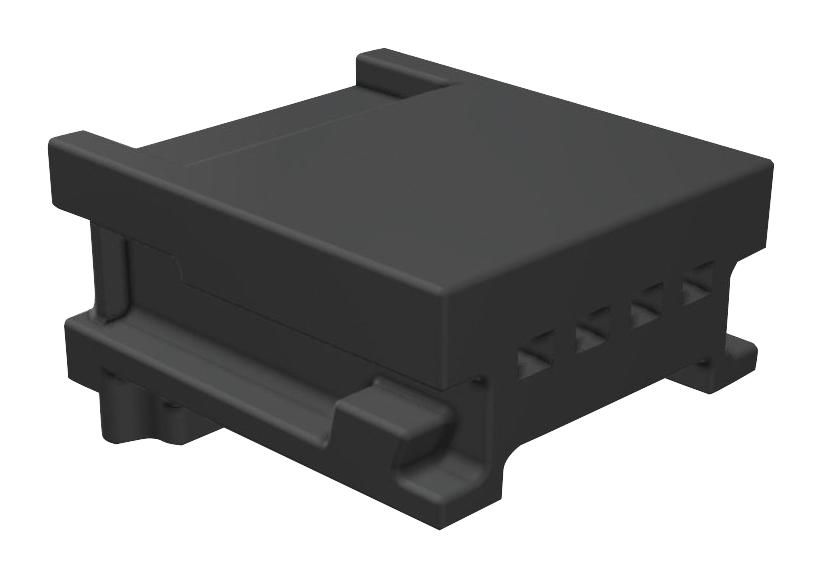

MOLEX 347910140 Unsealed Receptacle
The MOLEX 34791-0140 is a Mini50 unsealed receptacle within the Mini50 Connection Systems family. This receptacle is designed for wire-to-board applications and offers a robust connection solution. It features 4 circuits, polarization option A, and a black PBT resin construction. The receptacle is polarized to the mating part and includes a locking mechanism for secure mating. It is RoHS compliant and suitable for a wide range of industrial applications requiring reliable wire-to-board connectivity.
MOLEX 347910140 Unsealed Receptacle Specifications:
- Product Family Series: 34791
- Application Overview: Wire-to-Board
- Polarization: A
- Circuits (maximum): 4
- Color - Resin: Black
- Gender: Receptacle
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: PBT
- Net Weight: 0.787/g
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.00mm
- Pitch - Termination Interface: 2.00mm
- Stackable: No
- Temperature Range - Operating: -40°C to +105°C
- Lead-freeProcess Capability: N/A
- EU ELV Compliant: Yes
- EU RoHS China RoHS Compliant: Yes
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Mates With: Mini50 Vertical Header 34792, Mini50 Right-Angle Through Hole Header 34793, Mini50 Right-Angle Surface Mount Header 34912
- Use With: CTX50 Unsealed Terminals 560023
Buy the 34791-0140 MOLEX Unsealed Receptacle | myMectronic
Purchase the MOLEX 34791-0140 unsealed receptacle securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 347910140?
You can click on the BUY or RFQ button to purchase 347910140 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 347910140?
You can download the 347910140 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 347910140?
MOLEX
