MOLEX 2175201124 Wire-to-Wire Connector

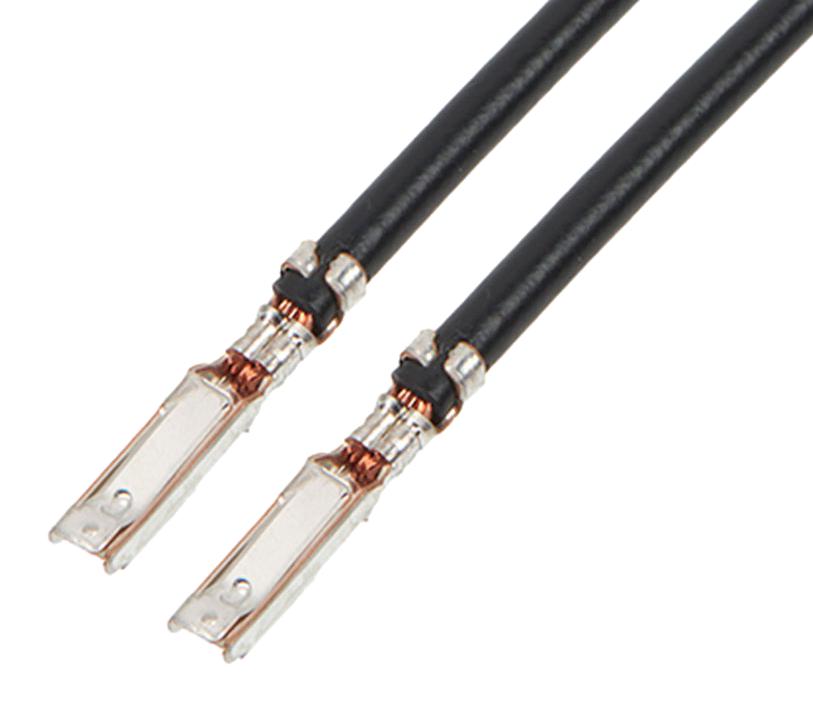

The pre-crimped lead features a female-to-female connection with Tin (Sn) plating, 300mm cable length, and 22 AWG wire size, suited for wire-to-wire applications. Made with phosphor bronze, it offers reliable electrical performance with a maximum voltage of 125V. This assembly is black in color and designed for quick connector-to-connector assembly, ensuring secure connections in electronic and industrial systems. It complies with RoHS standards and is halogen-free, making it an environmentally friendly choice for wiring needs.
MOLEX 2175201124 Wire-to-Wire Connector Specifications:
- Series: 217520
- Type: Signal, Wire-to-Wire
- Application: Connector to Connector
- Assembly Configuration: Discrete Wire Assembly
- Cable Length: 300.00mm
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 2.159 grams
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size AWG: 22
- Wire/Cable Type: 1x0.50mm FLRY-B, N/A
- Voltage - Maximum: 125V
- RoHS Compliant: Yes
- Halogen-Free: Not Low-Halogen
Buy the Molex 217520 – Reliable Wire-to-Wire Connectors for Industrial Applications
Experience secure, reliable connections with the Molex 217520 pre-crimped female-to-female lead. Designed with high-quality phosphor bronze and Tin plating, it offers excellent conductivity and corrosion resistance. The 300mm cable length and 22 AWG wire size make it ideal for various wiring applications in industrial electronics. Its easy crimp or compression termination ensures quick assembly, saving time and reducing labor costs. Compliant with RoHS standards, it is environmentally friendly and suitable for diverse industrial environments. Buy online now for dependable performance.
Get Molex 217520 today—built for precise and long-lasting durable connectors suitable for industrial wiring systems.
Frequently Asked Questions
Where can I buy MOLEX 2175201124?
You can click on the BUY or RFQ button to purchase 2175201124 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2175201124?
You can download the 2175201124 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2175201124?
MOLEX
