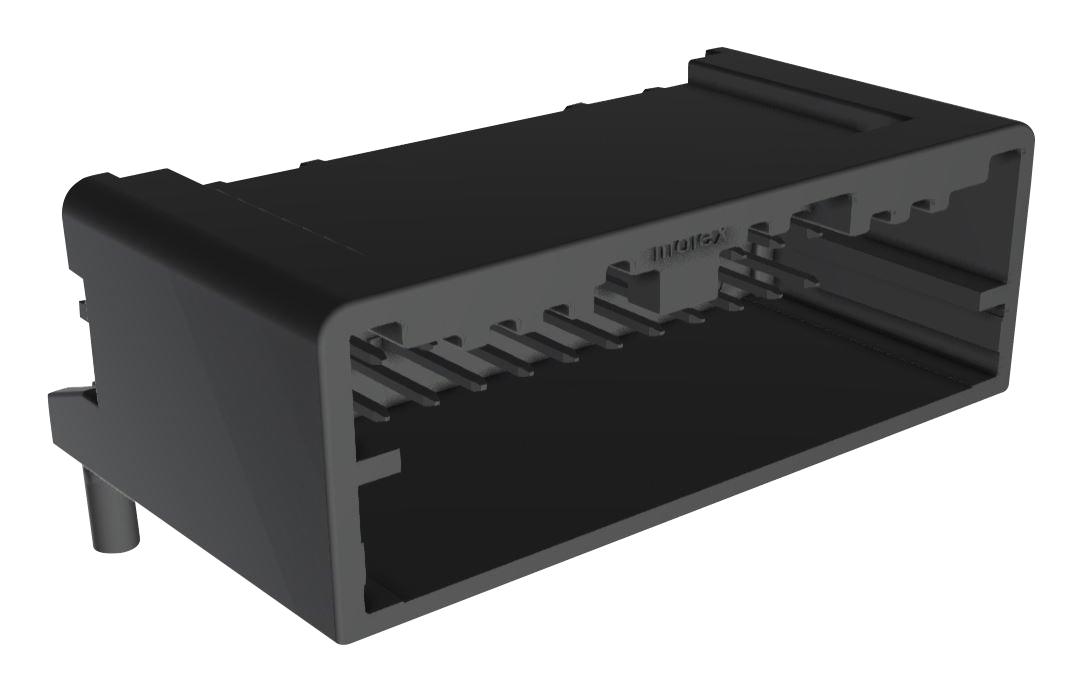

MOLEX 348260200 Power Signal Connector
The Mini50 Unsealed Right-Angle Header is a dual-row, 20-circuit wire-to-board connector designed for power and signal applications. Made from high-temperature thermoplastic, it features a brass contact material with tin over nickel plating for durability and corrosion resistance. The connector supports up to 4.0A current per contact and a maximum voltage of 500V DC, with a pitch of 2.00mm. Its right-angle orientation, polarized design, and maximum operating temperature of +105°C make it suitable for various electronic applications requiring reliable and precise connections.
MOLEX 348260200 Power Signal Connector Specifications:
- Series: Mini50
- Application: Power, Signal, Wire-to-Board
- Number of Circuits: 20
- Circuit Load: 4.0A per contact
- Maximum Voltage: 500V DC
- Pitch: 2.00mm
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating: Tin over Nickel
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): Not specified
- Orientation: Right Angle
- PC Tail Length: 4.0mm
- Operating Temperature Range: -40°C to +105°C
- Termination Interface: Through Hole
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Package Type: Tray
- Dimensions: 2.00mm pitch, 20 circuits, right-angle orientation
- RoHS/ELV Compliant: Yes
Buy the Molex Series Mini50 Power Signal Connector: 348260200
Purchase the Molex 348260200 Mini50 Unsealed Right-Angle Header online today for reliable, high-performance power and signal connections. Designed with a 2.00mm pitch and rated up to 4.0A and 500V DC, this durable connector features polarized design and a right-angle orientation for ease of assembly. Constructed from high-temperature thermoplastic and brass with tin over nickel plating, it ensures longevity and corrosion resistance. Ideal for electronic applications requiring secure, precise, and high-current wiring in a compact footprint. Order now for quality assurance and fast delivery.
Get Molex 348260200 today—built for precision, high-current capacity, and long-lasting durability in electronic connections.
