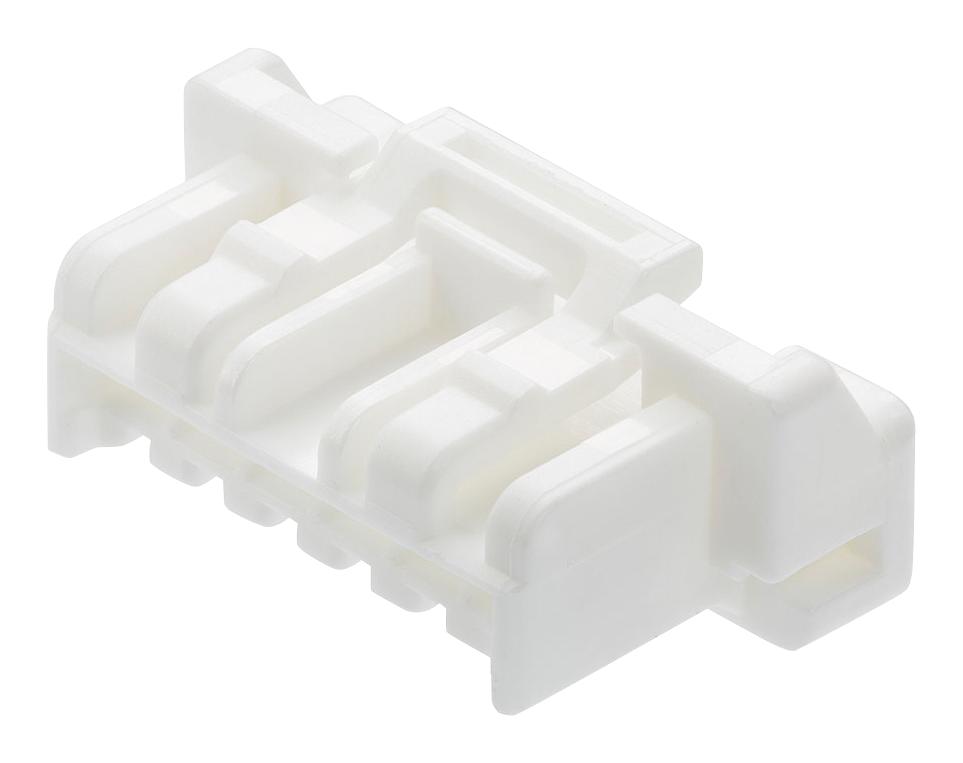

MOLEX 5024390500 Wire-to-Board Connector
The 2.00mm pitch CLIK-Mate wire-to-board connector housing is designed for reliable electrical connections in various electronic applications. It features a single row, positive lock mechanism, and supports up to 5 circuits with white resin material. Suitable for signal connections, this connector is rated for a maximum current of 3A per contact and operates within a temperature range of -40°C to +105°C. Compatible with crimp terminals, it ensures secure mating and easy installation for efficient wire management in complex assemblies.
MOLEX 5024390500 Wire-to-Board Connector Specifications:
- Pitch: 2.00mm
- Number of Circuits: 5
- Color: White
- Material: PBT resin
- Current Rating: 3A per contact
- Temperature Range: -40°C to +105°C
- Locking Mechanism: Positive lock
- Housing Type: Wire-to-Board, Single row
- Gender: Plug
- Wire Compatibility: Crimp terminal
- Packaging: Bag
- Maximum Voltage: Not specified in provided data, typical for signal connectors
- RoHS Compliance: Yes
- UL Certification: Yes
Buy the Buy Molex CLIK-Mate Wire-to-Board Part Number 5024390500 Online
Secure your electronic assemblies with the Molex CLIK-Mate wire-to-board connector, featuring a 2.00mm pitch and a positive lock for reliable connections. Its single-row design supports up to 5 circuits, with a current capacity of 3A per contact, ensuring dependable power distribution and signal integrity. Made from high-quality PBT resin, it operates efficiently between -40°C and +105°C, suitable for diverse environments. Compatible with crimp terminals, this connector simplifies installation and provides a secure, maintenance-free connection for various electronic projects.
Buy Molex 5024390500 now and experience unmatched reliability and performance in wire-to-board electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 5024390500?
You can click on the BUY or RFQ button to purchase 5024390500 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5024390500?
You can download the 5024390500 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5024390500?
MOLEX
