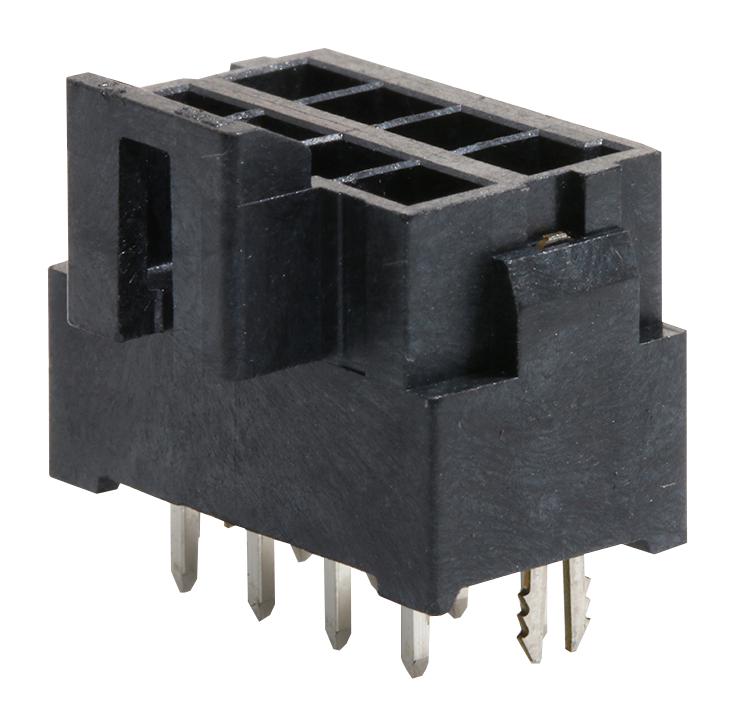

MOLEX 1722991108 Vertical Header
The MOLEX 172299-1108 is an Ultra-Fit vertical header, part of the Ultra-Fit Power Connectors series. This header is designed for secure and efficient wire-to-board connections in a variety of industrial applications. It features a 3.50mm pitch, dual-row configuration with 8 circuits, and is constructed with copper alloy and liquid crystal polymer materials. The header offers excellent durability with a 25 mating cycle rating and is glow-wire capable, making it suitable for demanding environments. It is RoHS compliant and designed for easy integration into PCB designs.
MOLEX 1722991108 Vertical Header Specifications:
- overview: Ultra-Fit Power Connectors
- description: Ultra-Fit Vertical Header, 3.50mm Pitch, Dual Row, 8 Circuits, with Solder Clips, Tin (Sn) Plating, Black, Glow-Wire Capable
- agency_certification: CSA LR19980, UL E29179
- series: 172299
- application: Wire-to-Board
- circuits_loaded: 8
- circuits_maximum: 8
- color_resin: Black
- durability_mating_cycles: 25
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: Yes
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Copper Alloy
- material_plating_mating: Tin over Nickel
- material_plating_termination: Tin over Nickel
- material_resin: Liquid Crystal Polymer
- number_of_rows: 2
- orientation: Vertical
- pcb_tail_length: 3.20mm
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm
- packaging_type: Tray
- pitch_mating_interface: 3.50mm
- pitch_termination_interface: 3.50mm
- plating_min_mating: 1.524µm
- plating_min_termination: 1.524µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- surface_mount_compatible: Yes
- temperature_range_operating: -40° to +120°C
- termination_interface_style: Through Hole
- current_maximum_per_contact: 12.0A
- voltage_maximum: 400V AC (RMS)/DC
- lead_free_process_capability: WAVE
- max_cycles_at_max_process_temp: 002
- process_temperature_max_c: 260
