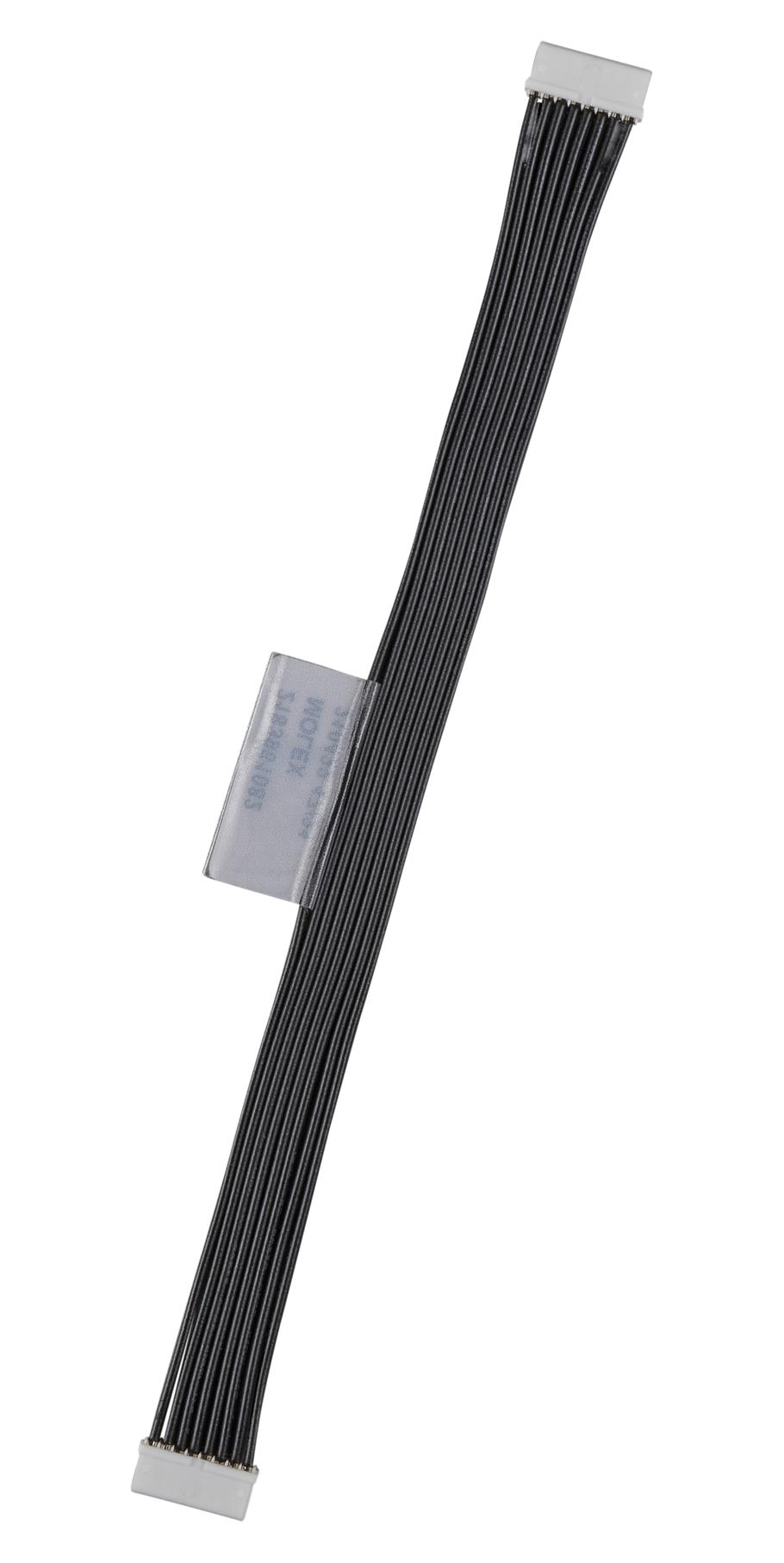

MOLEX 2183961083 Datasheet & Stock

The Pico-SPOX 1.5 Tin (Sn) discrete wire cable assemblies are off-the-shelf (OTS) solutions designed for easy prototyping and preproduction across various industries. They feature popular terminal types compatible with widely available crimp tools, and incorporate a vertical and right-angle single-row header with a unique friction lock to ensure secure terminal retention and latch protection. The 1.5mm pitch connector offers reliable mating retention while saving approximately 30% space compared to 2mm wire-to-board connectors. These assemblies are suitable for consumer electronics, industrial automation, and MedTech applications. They are certified by UL and CSA, with a maximum voltage rating of up to 250VAC and a current per contact of 2.5A. The cable utilizes 24AWG UL 10002 wire, housed in durable nylon with phosphor bronze contacts tin-plated for corrosion resistance. Designed for up to 10 mating cycles and operating within -10°C to +105°C, they feature polarization keys to prevent mismating during assembly. The SMT-type plug header allows for automatic assembly, making these cable assemblies a reliable and efficient choice for various electronic applications.

View 2183961083Datasheet [pdf]
