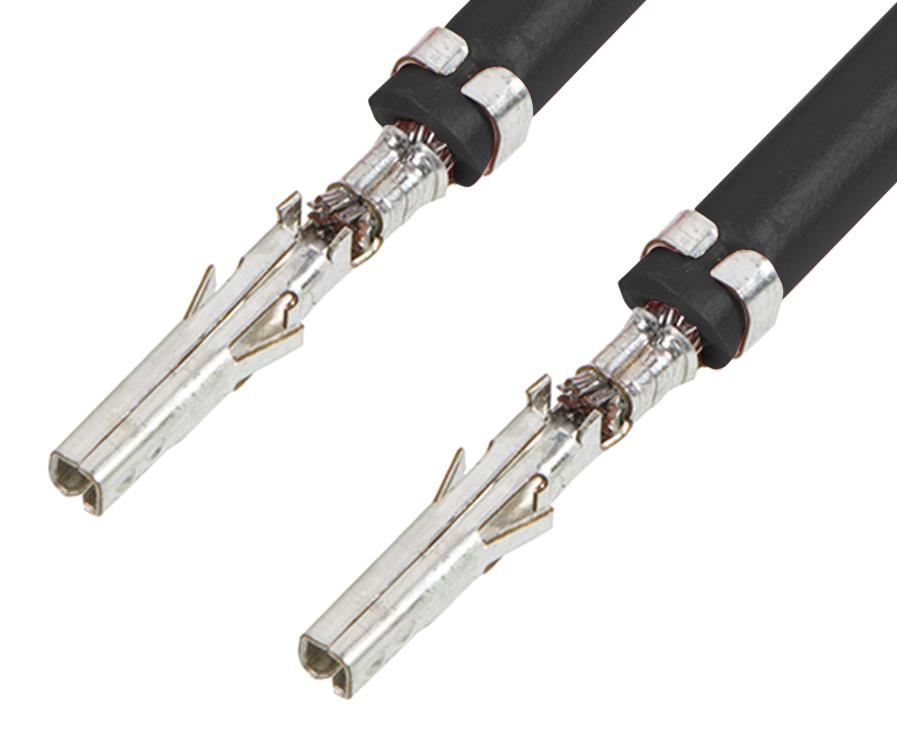

MOLEX 2153401121 Power Connector Leads
This product consists of off-the-shelf pre-crimped female-to-female Mini-Fit Jr. leads with tin (Sn) plating, 75.00mm length, and 16 AWG wire size. Designed for wire-to-wire connections, these leads provide easy and reliable mating for power and signal applications in various industries. They are compatible with Mini-Fit Jr. receptacles and panel mounts, offering a robust, corrosion-resistant connection solution. The leads are suitable for use in power circuitry up to 600V and 9.0A current rating, ensuring efficient electrical performance and durability.
MOLEX 2153401121 Power Connector Leads Specifications:
- Product Family: Power, Wire-to-Board, Wire-to-Wire
- Series: 215340
- Application: Connector to Connector
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Cable Length: 75.00mm
- Wire Size AWG: 16
- Wire Insulation Diameter: 1.80-3.10mm
- Color - Resin: Black
- Gender: Female-Female
- Termination Interface: Crimp or Compression
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Net Weight: 2.181g per unit
- Packaging Type: Bag
- Compatible with: Mini-Fit Jr. Receptacle Housing 5557, Panel Mount Receptacles 42474, 43760
- RoHS Compliance: Yes, RoHS 2.0 compliant
- Halogen-Free: No
- Status: Active
- Part Number: 2153401121
Buy the Molex 2153401121 – Reliable Power and Signal Mini-Fit Jr. Leads for Industrial Applications
Discover high-quality Molex Power Connector Leads, ideal for power and signal connections in industrial environments. These off-the-shelf pre-crimped female-to-female Mini-Fit Jr. leads feature a 75mm length, 16 AWG wire size, and tin plating for enhanced corrosion resistance. Designed for reliable connector-to-connector mating, they support up to 600V and 9.0A current capacity, making them suitable for various industrial and power applications. Easy to install, durable, and RoHS compliant, perfect for manufacturers and maintenance teams.
Buy Molex 2153401121 now and experience unmatched reliability and performance in power and signal wiring solutions.
