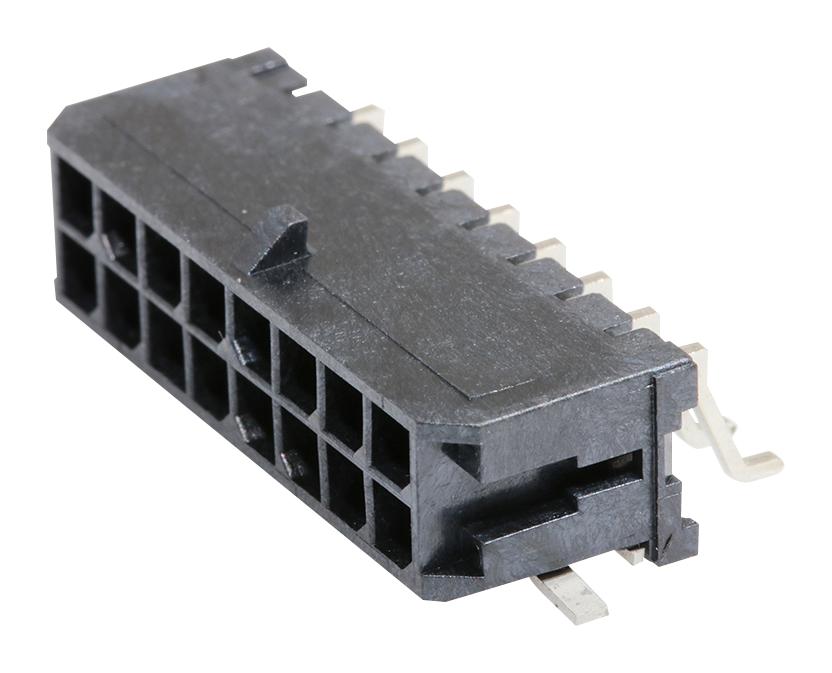

MOLEX 430451610 Power Header
The Micro-Fit 3.0 right-angle header is a versatile power and wire-to-board connector with a 3.00mm pitch, dual row, 16 circuits, and gold-plated contacts. Designed for high-temperature applications, it features a glow-wire capable thermoplastic housing rated for operational temperatures from -40°C to +105°C, and is UL and CSA certified. With a maximum current of 8.5A and voltage rating of 600V, it is suitable for demanding electronic assemblies requiring reliable connections in household and industrial appliances.
MOLEX 430451610 Power Header Specifications:
- Pitch - Mating Interface: 3.00mm
- Number of Circuits (Loaded): 16
- Maximum Circuits: 16
- Color - Resin: Black
- Durability (mating cycles max): Fully recyclable, high durability
- Flammability: Glow wire capable, UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: N/A
- Material - Metal: Not specified
- Material - Plating Mating: Gold
- Material - Plating Termination: Not specified
- Material - Resin: High-temperature thermoplastic
- Net Weight: 2.402g
- Number of Rows: 2
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- Recommended PCB Thickness: Not specified
- Operating Temperature Range: -40°C to +105°C
- Termination Interface: Reflow solder process
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Process Temperature Max.: 260°C
- Material Info: High-temperature thermoplastic
- Drawing Numbers: 430450001-PK-000
- Packaging Specification: Embossed Tape on Reel
- Product Specification: PS-43045, PS-43045-001, TS-43045-001-001, TS-43045-002-001
Buy the Molex Series Micro-Fit High Temperature Power Connector: 0430451610
Purchase the Molex Micro-Fit 3.0 Power Header online today to ensure reliable, high-current connections suitable for demanding electronic and industrial applications. This 3.00mm pitch, dual row connector features gold-plated contacts for excellent corrosion resistance and consistent connectivity. Its high-temperature thermoplastic housing withstands temperatures from -40°C to +105°C, making it ideal for household appliances, industrial equipment, and other electronic devices requiring robust power distribution. Efficient reflow soldering and UL/CSA certifications guarantee quality, safety, and long-lasting performance for your projects.
Buy Molex 0430451610 now and experience unmatched reliability, high current capacity, and durable high-temperature performance for industrial and electronic needs.
