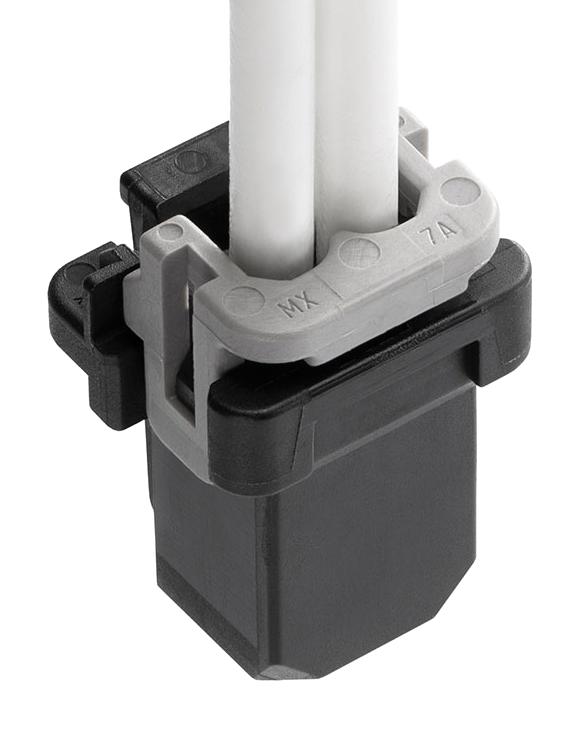

MOLEX 2127242041 Micro-One Wire-to-Board Connector
The MOLEX 212724-2041 is a Micro-One wire-to-board receptacle housing, part of the 212724 series. Designed for power applications, this housing offers a 2.00mm pitch and accommodates 4 circuits. It is glow-wire capable, indicating suitability for certain electrical safety standards. Constructed from polyamide resin, the housing is black in color and features a female gender. It is RoHS compliant and designed to mate with Micro-One TPA retainers and female crimp terminals, providing a secure and reliable connection in wire-to-board applications.
MOLEX 2127242041 Micro-One Wire-to-Board Connector Specifications:
- status: Active
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Receptacle Housing, 2.00mm Pitch, Glow-Wire Capable, 4 Circuits
- agency_certification: UL E29179
- product_family: Crimp Housings
- series: 212724
- application: Power, Wire-to-Board
- circuits_maximum: 4
- color_resin: Black
- gender: Female
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Polyamide
- net_weight: 319.560/mg
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: No
- stackable: No
- temperature_range_operating: -40° to +105°C
- upc: 193264613816
- material_info_reference_drawing_numbers: Application Specification 2059790000-AS-000, Packaging Specification 2127249200-SPK-200, Product Specification 2059790000-PS-000, Sales Drawing 2127240000-SD-000
- mates_with: Micro-One TPA Retainer 212725, MicroOne Vertical Header 217063, Micro-One Right-Angle Header 217064
- use_with: Micro-One Female Crimp Terminal 56134
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained Per - D(2020)9139-DC (19 Jan 2021)
- halogen_free_status: Not Low-Halogen
