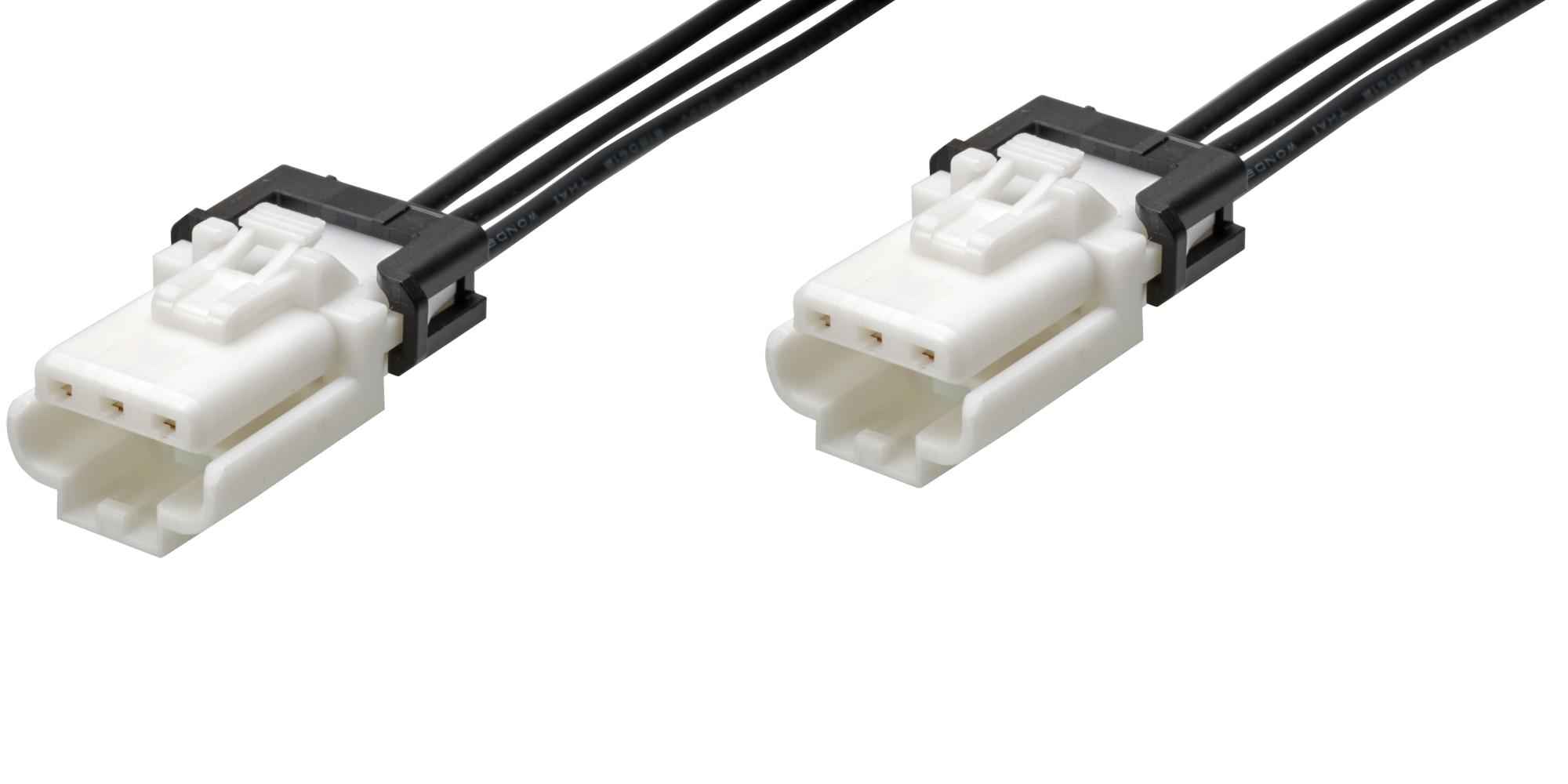

MOLEX 369220301 Wire-to-Wire Connector
The Ditto-to-Ditto Off-the-Shelf Cable Assembly features a 3.00mm pitch and a single row configuration, designed for power and signal transfer in compact electronic applications. Its black nylon insulation and tin-plated brass contacts ensure durability and reliable connectivity. The 100mm length with 3 circuits makes it suitable for streamlined, efficient wiring solutions. Suitable for connector-to-connector assembly, it supports maximum current of 4.8A and voltage of 350V AC/DC, providing dependable performance in various electronic systems.
MOLEX 369220301 Wire-to-Wire Connector Specifications:
- Pitch - Mating Interface: 3.00mm
- Circuits (Loaded): 3
- Cable Length: 100.00mm
- Color - Resin: Black
- Material - Metal: Tin Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 1.35-1.70mm
- Wire Size AWG: 20
- Current - Maximum per Contact: 4.8A
- Voltage - Maximum: 350V AC/DC
- Number of Rows: 1
- Packaging Type: Bag
- Type: Power, Wire-to-Wire
- Application: Dual Ended Connectors
- Termination Interface Style: Crimp or Compression
- Material Info: UL 1061
Buy the Molex 0369220301 – Reliable Power and Signal Connector for Industrial Applications
Enhance your electronic systems with the Molex wire-to-wire connector designed for power and signal transfer. Featuring a 3.00mm pitch, 100mm length, and three circuits, this black nylon insulated assembly offers high reliability and durability. Its tin-plated brass contacts ensure excellent electrical performance, supporting up to 4.8A current and 350V voltage. Perfect for connector-to-connector applications, it is UL listed, RoHS compliant, and suitable for various industrial, automation, and electronic projects demanding secure, efficient connections.
Order your Molex Series36922 0369220301 today and give your electronic projects the dependable quality they deserve with robust wire-to-wire connectivity.
Frequently Asked Questions
Where can I buy MOLEX 369220301?
You can click on the BUY or RFQ button to purchase 369220301 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 369220301?
You can download the 369220301 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 369220301?
MOLEX
