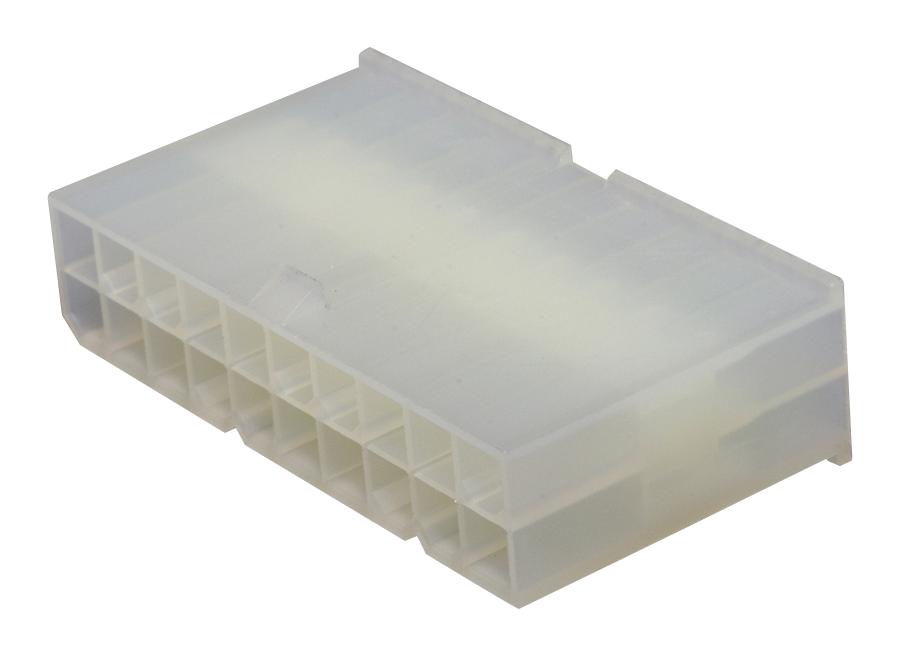

MOLEX 39013203 Mini-Fit Jr. Power Connector
The MOLEX 39-01-3203 Mini-Fit Jr. Power Connector is a versatile solution for power distribution in various applications, including wire-to-board and wire-to-wire connections. Designed with 20 circuits and a robust nylon resin body, it provides reliable performance up to a maximum current of 13A per circuit when paired with compatible terminals. The connector is polarized and stackable, offering ease of use and efficient space utilization. It is UL 94V-2 rated and RoHS compliant, ensuring adherence to industry standards. Refer to Molex product specifications for detailed current derating information and optimal performance.
MOLEX 39013203 Mini-Fit Jr. Power Connector Specifications:
- overview: Mini-Fit Jr. Power Connectors
- product_family: Crimp Housings
- series: 5559
- application: Power, Wire-to-Board, Wire-to-Wire
- circuits_maximum: 20
- color_resin: Natural
- flammability: 94V-2
- gender: Plug
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 5.320
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 4.20mm
- pitch_termination_interface: 4.20mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +105°
- current_maximum_per_contact_a: 13.0
- eu_elv: Not Relevant
- eu_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: Receptacle Housing 39012180
- use_with: Mini-Fit Jr. Male Crimp Terminals 5558, Mini-Fit Male Grounding Crimp Terminals 30490, Mini-Fit Plus Crimp Terminal 46012
- lead_free_process_capability: N/A
