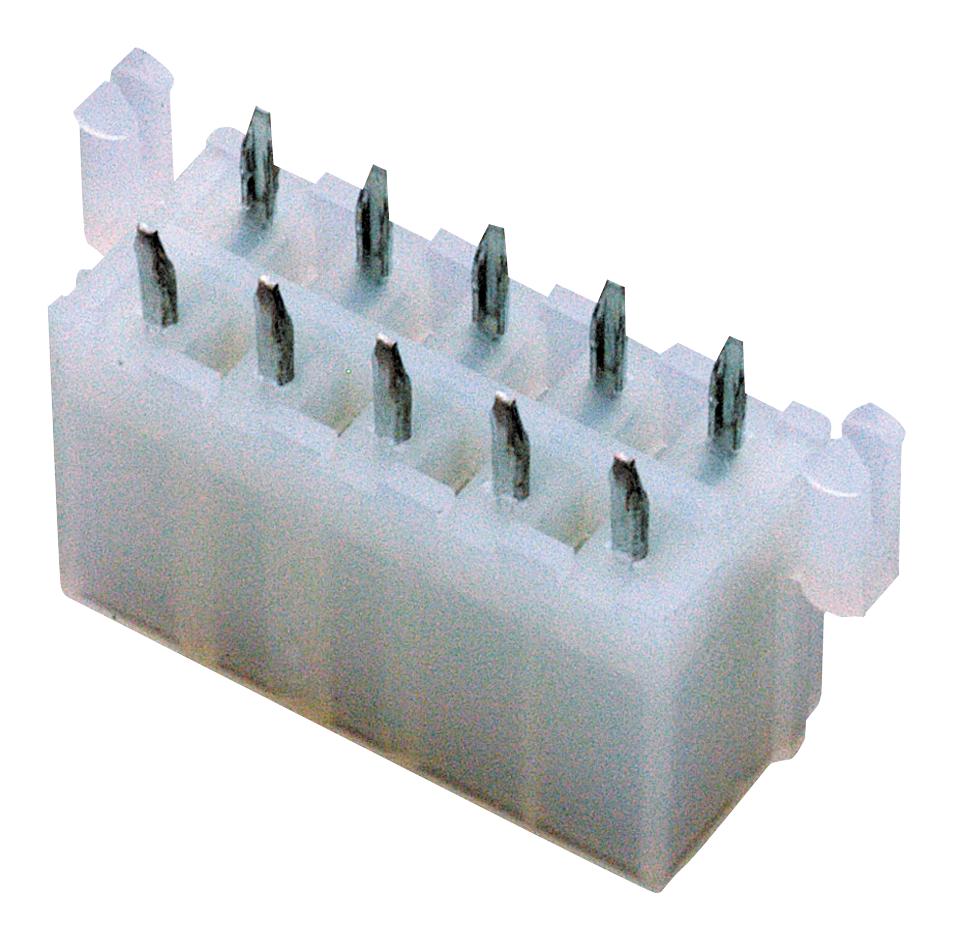

MOLEX 39299186 Power Connector
The Mini-Fit Jr. Vertical Header with a 4.20mm pitch features a dual-row, 18-circuit design with a snap-in plastic peg PCB lock, tin-plated contacts, and a natural resin color. Perfect for power applications in electrical and electronic device manufacturing, it supports a maximum current of 9.0A per contact and a voltage up to 600V. Engineered for durability with a temperature range of -40°C to +105°C, the header offers reliable mating, polarization, and RoHS compliance. Suitable for wire-to-board connections in various industrial projects requiring high current capacity and secure connections.
MOLEX 39299186 Power Connector Specifications:
- Pitch - Mating Interface: 4.20mm
- Number of Circuits: 18
- Material - Metal: Not specified
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Natural
- Color - Resin: Natural
- Durability (mating cycles max): Not specified
- Temperature Range - Operating: -40°C to +105°C
- Voltage - Maximum: 600V
- Current - Maximum per Contact: 9.0A
- PCB Thickness - Recommended: 1.60mm
- PCB Retention: Yes
- Surface Mount Compatible (SMC): No
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded Fully: Yes
- Stackable: No
- Solder Process Data - Max Temperature: 240°C
- Process Duration at Max Temperature: 5 seconds
Buy the Molex 0039299186 – Reliable Power Connectors for Industrial Applications
Enhance your electrical assemblies with this reliable power connector featuring 18 circuits, a 4.20mm pitch, and a robust snap-in lock system. It supports up to 9A per contact and 600V, making it ideal for Industrial power applications requiring secure, durable connections. RoHS compliant and operating efficiently from -40°C to +105°C, these connectors are perfect for wire-to-board setups in manufacturing, automation, and power distribution projects. Purchase online now for quick, dependable delivery and elevate your project quality with proven component performance.
Order your Molex Series5566 0039299186 power connector today and ensure secure, high-current connections for your industrial automation projects.
Frequently Asked Questions
Where can I buy MOLEX 39299186?
You can click on the BUY or RFQ button to purchase 39299186 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39299186?
You can download the 39299186 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39299186?
MOLEX
