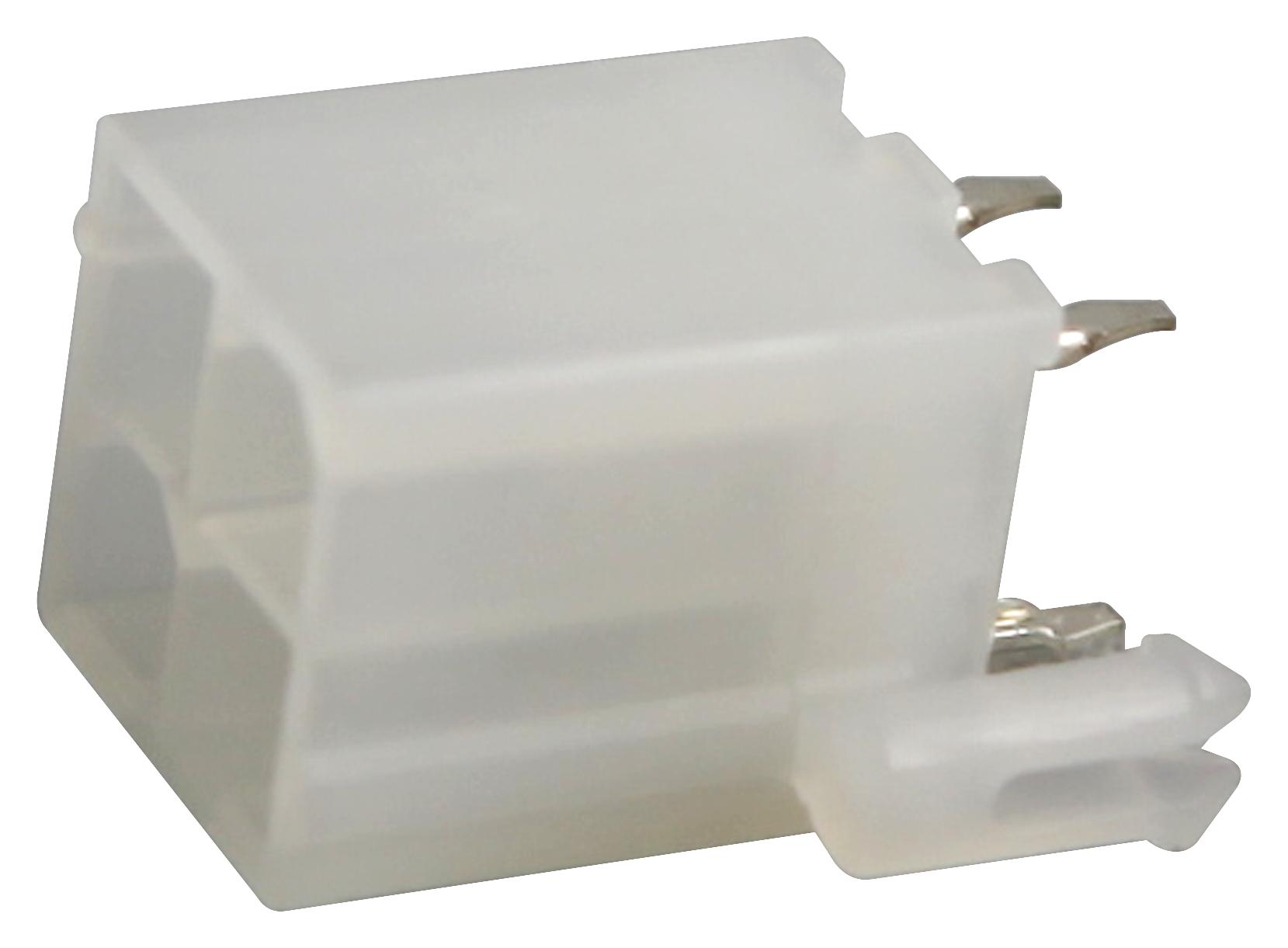

MOLEX 39306107 Power Connector
Mini-Fit Jr. vertical header with 4.20mm pitch, dual row, 10 circuits, and snap-in plastic peg PCB lock. Designed for power and wire-to-board applications, this shrouded connector supports operating temperatures from -40°C to +105°C, maximum voltage of 600V, and current per contact of 9.0A. It is RoHS compliant, halogen-free, and used with standard Mini-Fit female terminals. Suitable for high-current connections in industrial equipment, automation, and power systems, this connector ensures reliable and secure electrical connections with polarization and PCB retention features for durable performance.
MOLEX 39306107 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Rows: 2
- Circuits (Loaded): 10
- Maximum Circuits: Not specified
- Color - Resin: Not specified
- Durability (mating cycles max): Not specified
- First Mate / Last Break: Not specified
- Flammability: Not specified
- Glow-Wire Capable: Not specified
- Material - Metal: Not specified
- Material - Plating Mating: Min 2.540μm
- Material - Plating Termination: Min 2.540μm
- Material - Resin: Not specified
- Net Weight: Not specified
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Surface Mount Compatible: No
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Through Hole
- Electrical - Max per Contact: 9.0A
- Electrical - Max Voltage: 600V
- Solder Process Data: Max temp 240°C, duration at max temp 5 seconds
Buy the Molex 0039306107 – Reliable Power Connectors for Industrial Applications
Enhance your electrical connections with the Molex Power Connector designed for industrial and automation applications. This shrouded, dual-row connector features a 4.20mm pitch, supporting up to 9A per contact and 600V. Its rugged construction withstands temperatures from -40°C to +105°C, making it ideal for power systems requiring reliable, high-quality connections. Compact and polarized, it ensures easy and secure mating with your PCB and mate components. Purchase online today for dependable performance in demanding electrical environments, ensuring safety and longevity for your projects.
Order your Molex Series 5566 0039306107 today and ensure durable, high-current power connections for industrial projects and automation systems.
Frequently Asked Questions
Where can I buy MOLEX 39306107?
You can click on the BUY or RFQ button to purchase 39306107 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39306107?
You can download the 39306107 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39306107?
MOLEX
