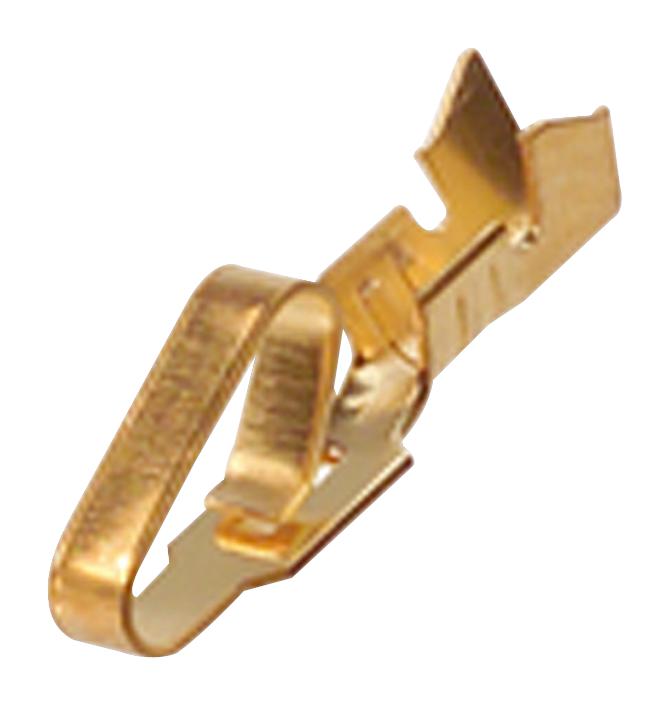

MOLEX 08550133 KK 396 Crimp Terminal
The MOLEX 0008550133 is a KK 396 Crimp Terminal within the KK Interconnect System. Constructed from brass with a gold plating, this terminal is designed for use with 18-24 AWG wire. It offers a secure and reliable connection for various applications, particularly within the KK 396 and KK 508 series. This component is RoHS compliant and currently active, ensuring availability and adherence to environmental standards. Refer to the provided documentation for detailed specifications and tooling information.
MOLEX 08550133 KK 396 Crimp Terminal Specifications:
- Material - Metal: Brass
- Material - Plating: Gold
- Plating min - Mating: 0.762µm
- Plating min - Termination: 0.762µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 2.79mm max.
- Wire Size AWG: 18, 20, 22, 24
- Wire Size mm²: N/A
- Packaging Type: Reel
- Product Family Series: 2478
- Application: Crimp Quality Equipment
- Power: Yes
- Net Weight: 0.150/g
- Lead-freeProcess Capability: N/A
- Engineering Number: 2478-1-(561)
- UPC: 800753842540
