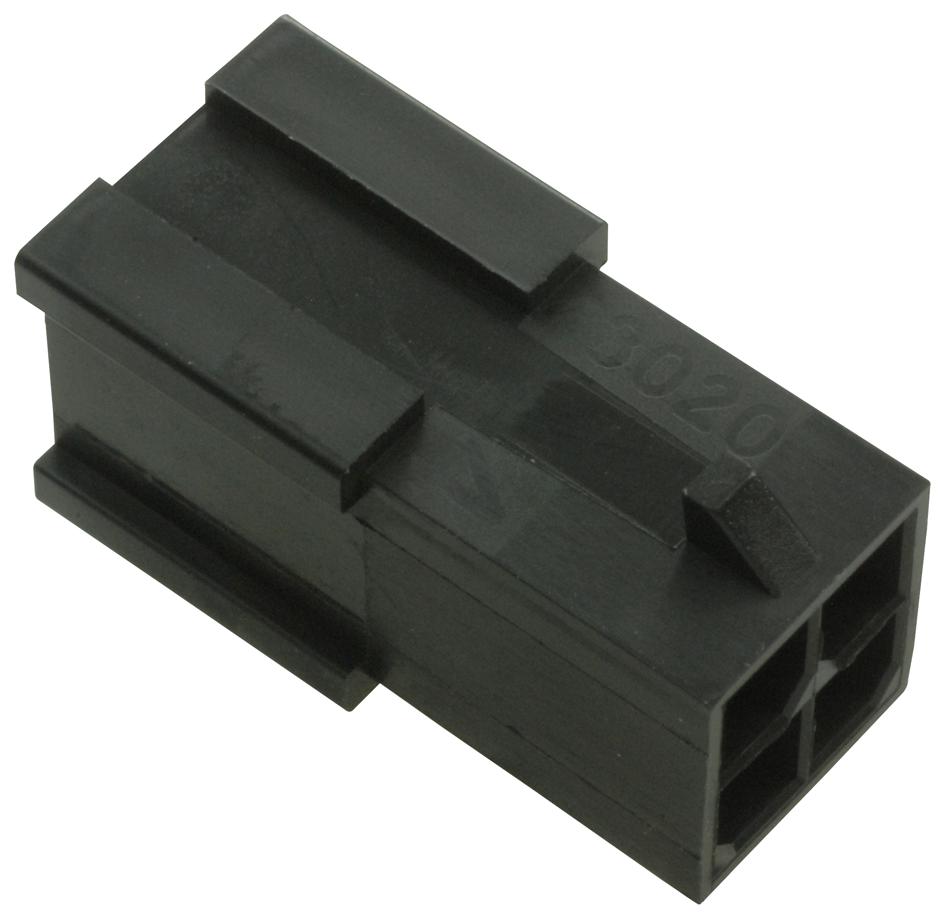

MOLEX 430200409 Micro-Fit 3.0 Plug Housing
The MOLEX 43020-0409 Micro-Fit 3.0 plug housing is a robust and reliable connector solution for various wire-to-wire applications. Designed as part of the Micro-Fit 3.0 connector system, this housing provides a secure and efficient connection with polarized mating parts. Constructed with a black nylon resin body and rated UL 94V-0, it offers excellent flame retardancy and durability. The housing supports a maximum of 4 circuits and is suitable for applications requiring a compact and dependable power connector.
MOLEX 430200409 Micro-Fit 3.0 Plug Housing Specifications:
- overview: Micro-Fit 3.0 Connector System
- description: Micro-Fit 3.0 Plug Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen Since Inception, Black
- circuits_maximum: 4
- color_resin: Black
- flammability: 94V-0
- gender: Plug
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 0.588
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 3.00
- pitch_termination_interface_mm: 3.00
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +105°
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- rohs: Compliant
- phthalates: Not Contained
- series: 43020
- mates_with: Micro-Fit 3.0 Receptacle Housings 43025, Micro-Fit 3.0 Cable Assembly 245132
- use_with: Micro-Fit 3.0 Male Crimp Terminals 43031
- lead_free_process_capability: N/A
