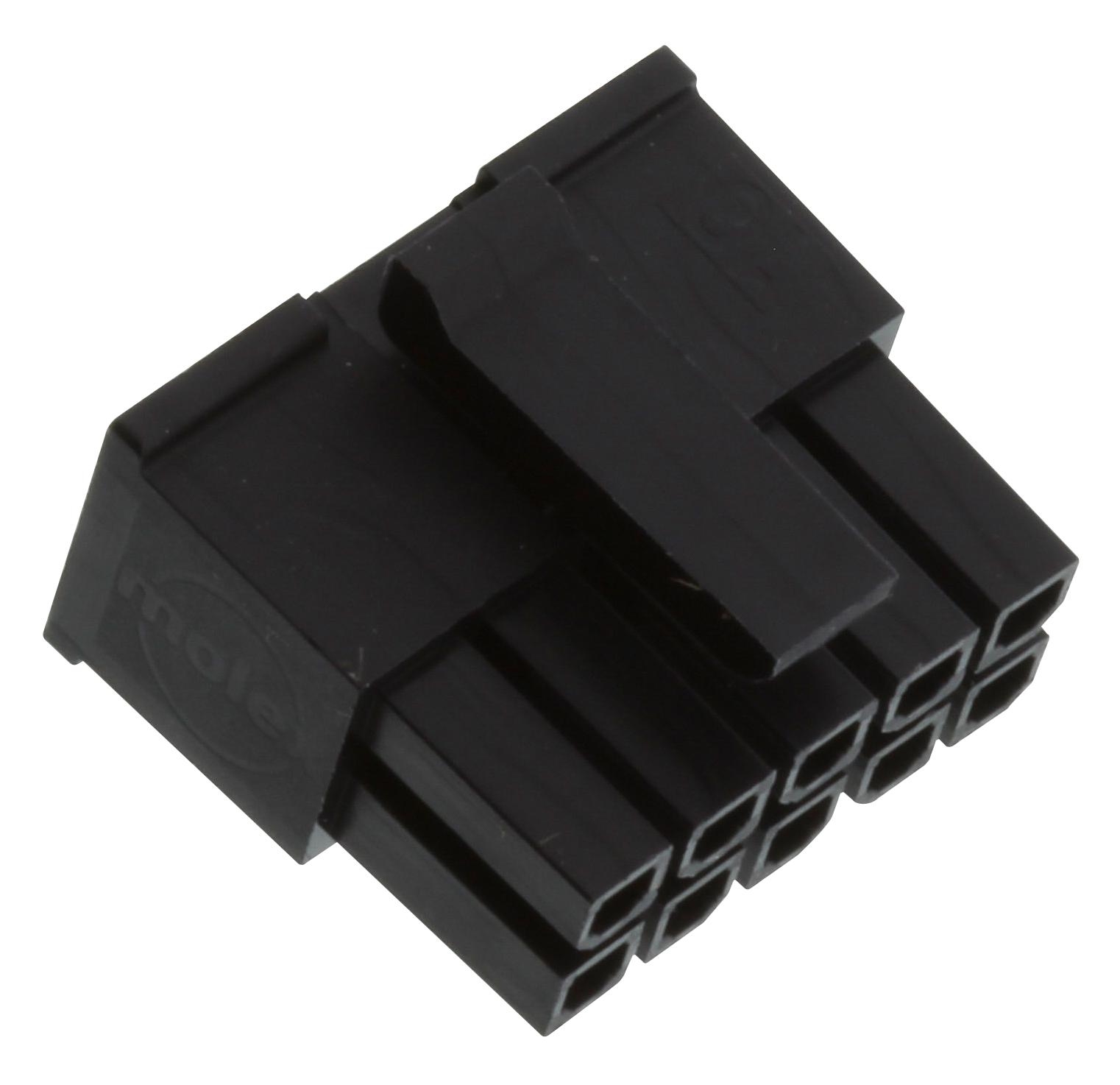

MOLEX 430251008 Micro-Fit 3.0 Receptacle Housing
The MOLEX 43025-1008 Micro-Fit 3.0 Receptacle Housing is a critical component in various electrical systems, particularly those requiring robust wire-to-board or wire-to-wire connections. This housing, part of the Micro-Fit 3.0 Connector System, is engineered for reliable performance in demanding environments. Constructed from durable nylon resin and featuring a black finish, it provides excellent insulation and a professional aesthetic. The dual-row design accommodates 10 circuits, making it suitable for a wide range of applications. Its UL 94V-0 flammability rating ensures safety, while the polarized design and locking mechanism guarantee a secure and consistent mating connection. This receptacle housing is ideal for applications in automotive, industrial equipment, and consumer electronics.
MOLEX 430251008 Micro-Fit 3.0 Receptacle Housing Specifications:
- overview: Micro-Fit 3.0 Connector System
- description: Micro-Fit 3.0 Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen Since Inception, Black
- series: 43025
- application: Power, Wire-to-Board, Wire-to-Wire
- comments: Halogen Free/Low Halogen since inception
- circuits_maximum: 10
- color_resin: Black
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 0.847
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 3.00
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +105°
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Not Contained Per -ED/88/2018
- halogen_free_status: Low-Halogen
- mates_with: Micro-Fit 3.0 Plug Housings 43020, MicroFit 3.0 Headers 43045, Micro-Fit 3.0 Test Plug 44242
- use_with: Micro-Fit 3.0 Female Crimp Terminals 43030, 45773, Micro-Fit RMF Female Crimp Terminals 46235
- lead_free_process_capability: N/A
- drawing_numbers: Application Specification 430250000-AS-000, Packaging Specification PK-43025-001-001, Product Specification PS-43045, PS-43045-001, TS-43045-001-001, TS-46235-001-001, SD-43025-001-001
