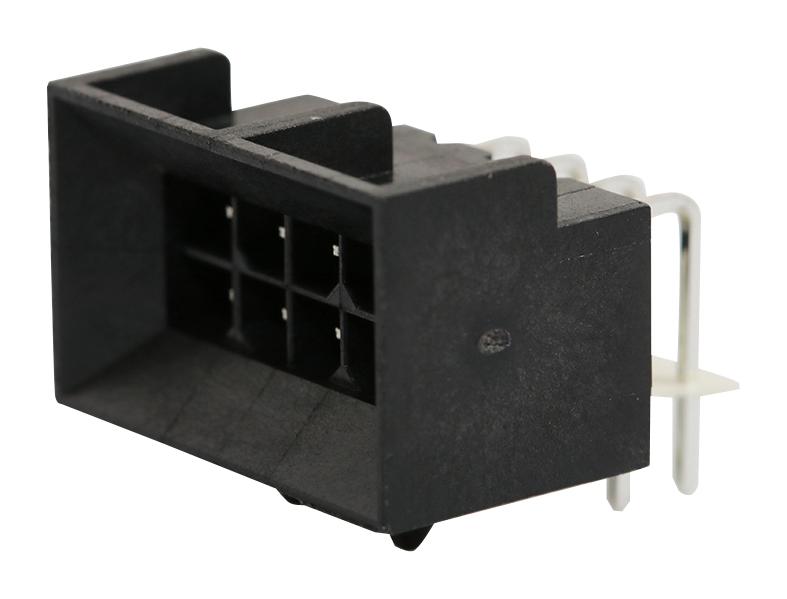

MOLEX 444280801 Micro-Fit Connector
The Micro-Fit 3.0 Connector System offers a reliable, high-performance solution for board-to-board and power applications in industrial electronics. Featuring a dual-row, surface mount compatibility with a right-angle design, it includes an 8-circuit, tin-plated plastic header with snap-in PCB lock. Crafted from high-temperature thermoplastic with brass contacts, this rugged connector withstands harsh environments with a temperature range of -40°C to +105°C and a maximum current of 8.5A per contact. Certified by CSA and UL, it ensures safety, durability, and ease of mating in complex electronic assemblies.
MOLEX 444280801 Micro-Fit Connector Specifications:
- Number of Circuits: 8
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Lock Mechanism: Snap-in PCB Lock
- Orientation: Right Angle
- Pitch - Mating Interface: 3.50mm
- Rated Current: 8.5A per contact
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 30 mating cycles
- Temperature Rating: -40°C to +105°C
- Flammability: UL 94V-0
- Surface Mount Compatibility: Yes
- PCB Tail Length: 3.50mm
- PCB Thickness: 1.60mm
- UL and CSA Certified
- Process Temperature Max: 260°C
- Retention: Yes
- Shrouded: No
- Stackable: No
Buy the Molex 444280801 – Reliable Connector System for Industrial Applications
Purchase the Micro-Fit Connector online today and ensure your electronic assemblies are secure, high-performing, and compliant with industry standards. With robust design features including an 8-circuit configuration, surface mount compatibility, and high-temperature thermoplastic construction, this connector guarantees durability and reliable electrical connections in demanding environments. Its UL and CSA certifications, along with a maximum voltage of 600V and current rating of 8.5A per contact, make it an ideal choice for power, board-to-board, and wire-to-board applications. Order now for fast delivery and seamless integration.
Buy Molex 444280801 now and experience unmatched reliability and performance for your industrial electronics projects.
Frequently Asked Questions
Where can I buy MOLEX 444280801?
You can click on the BUY or RFQ button to purchase 444280801 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 444280801?
You can download the 444280801 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 444280801?
MOLEX
