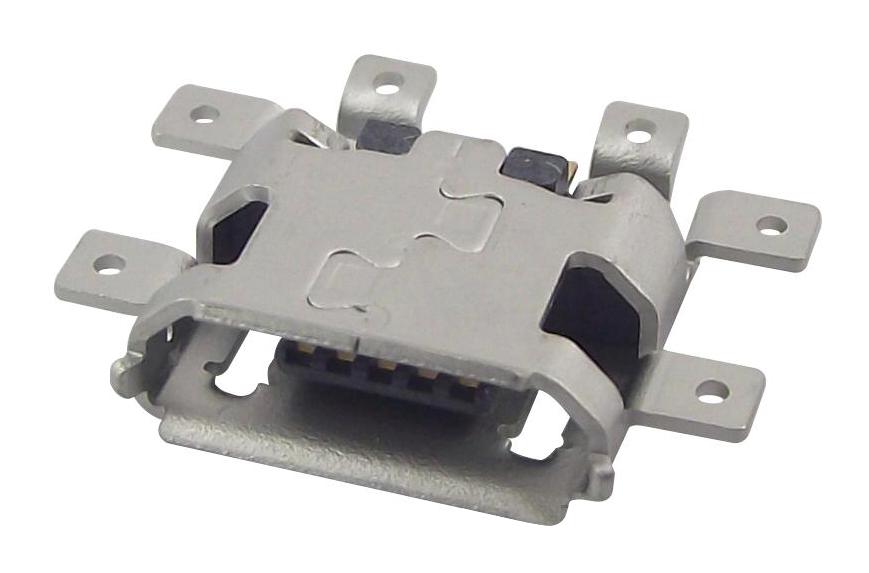

MOLEX 474910001TR425 Micro-USB B Receptacle
The Micro-USB B Receptacle offers a reliable and robust connection solution suitable for various electronic devices. Featuring a matte tin-plated shell, its Mid-Mount design ensures easy integration and durability. Compliant with RoHS standards, this lead-free component withstands up to 10,000 mating cycles and operates within a temperature range of -30°C to +85°C. Its compact black resin housing contains five circuits, providing dependable signal and power transmission for USB 2.0 applications. Designed for high-temperature thermoplastic use, it ensures longevity and consistent electrical performance in demanding environments.
MOLEX 474910001TR425 Micro-USB B Receptacle Specifications:
- Component Type: USB Micro-B Receptacle
- Number of Circuits: 5
- Maximum Circuits (Loaded): 5
- Color - Resin: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.321 grams
- Durability (Mating Cycles Max): 10,000
- Operating Temperature Range: -30°C to +85°C
- Voltage - Maximum: 30V AC (RMS)
- Current - Maximum per Contact: Signal 1.0A, Power 1.8A
- Shield Type: Full Shield
- Waterproof / Dustproof: No
- Termination Interface: Receptacle, right angle, embossed tape on reel
- Packaging Type: Embossed Tape on Reel
- Solder Process Data: Reflow, max temperature 245°C, 2 cycles
Buy the Buy Molex Micro-USB B Receptacle Part Number 474910001 Online
Get the Molex Micro-USB B Receptacle online, designed for durable, high-performance USB connections. This high-quality receptacle features a matte tin-plated shell, five circuits for reliable data and power transfer, and supports up to 10,000 mating cycles. Its RoHS compliance ensures it meets environmental standards, operating efficiently from -30°C to +85°C. Perfect for electronics requiring robust USB 2.0 connectivity, this receptacle’s compact, rugged design guarantees long-lasting performance, making it an excellent choice for consumer electronics, industrial devices, and more.
Order your Molex Series47491 Micro-USB B Receptacle today and ensure reliable, high-quality connections for your electronic projects.
