MOLEX 430450626 Power & Signal Connector
The Micro-Fit 3.0 Vertical Header with a 3.00mm pitch offers a reliable power and signal connection for PCB applications. Featuring dual rows and 6 circuits with PCB press-fit, it is gold-plated for enhanced durability and glow-wire capable, meeting IEC standards for heat and fire resistance. Made from high-temperature thermoplastic, it supports operating temperatures from -40°C to +105°C, ensuring performance in demanding environments. Its compact design with 17.64mm height and 1.60mm termination interface makes it suitable for power, wire-to-board connections, and high-reliability electronic systems.
MOLEX 430450626 Power & Signal Connector Specifications:
- Circuits: 6 loaded, maximum 6
- Color - Resin: Black
- Material - Metal: Brass with gold plating
- Material - Plating - Mating: Tin
- Material - Resin: High temperature thermoplastic
- Height: 17.64mm
- Pitch - Mating Interface: 3.00mm
- Electrical: Current - Max 8.5A, Voltage - Max 600V
- Operating Temperature Range: -40°C to +105°C
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Durability (Mating Cycles Max): 30
- PCB Thickness - Recommended: 1.60mm
- Termination Interface: Through Hole - Kinked Pin
- Packaging: Tray
- Contacts: Gold-plated
- Surface Mount Compatible: No
- Shrouded: No
- Stackable: No

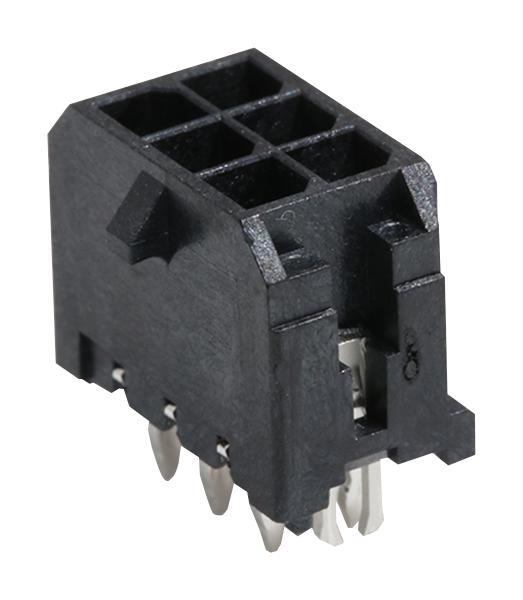

Buy the Buy Molex Micro-Fit 3.0 Part Number 430450626 Online
Enhance your electronic assemblies with the Molex Micro-Fit 3.0 Power and Signal Connector, featuring a 3.00mm pitch, dual-row design, and 6 circuits. With gold-plated contacts for long-lasting durability, high-temperature thermoplastic material, and glow-wire capability, it meets IEC fire and heat standards. Its press-fit PCB design simplifies installation, providing reliable electrical performance from -40°C to +105°C. Ideal for power, wire-to-board, and high-reliability applications, this compact connector is available for quick online ordering to streamline your manufacturing process.
Order your Molex Series43045 430450626 power and signal PCB connector today and ensure reliable, durable connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 430450626?
You can click on the BUY or RFQ button to purchase 430450626 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450626?
You can download the 430450626 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450626?
MOLEX
