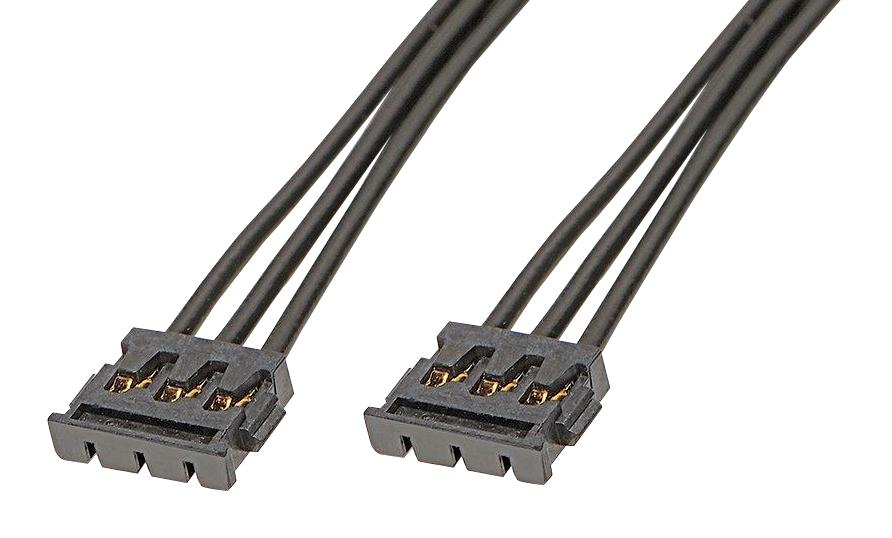

MOLEX 369200302 Wire-to-Board Connector
The Pico-EZmate-to-Pico-EZmate cable assembly features a 1.20mm pitch and a single row configuration with 3 circuits, suited for wire-to-board connections. This 150mm long, black overmolded connector system is designed for reliable, off-the-shelf connectivity in compact electronic applications. It is RoHS and REACH compliant, with gold-plated copper alloy contacts for enhanced durability and conductivity. The assembly employs crimp or compression termination interfaces, with a maximum current of 0.50V AC/DC and a wire insulation diameter of 0.100 inches, ensuring secure electrical connections and ease of assembly.
MOLEX 369200302 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 1.20mm
- Number of Circuits: 3
- Cable Length: 150.00mm
- Color: Black
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Resin: Liquid Crystal Polymer
- Wire Insulation Diameter: 0.100 inches
- Wire Size AWG: 28
- Current - Maximum per Contact: 0.50V AC/DC
- Voltage - Maximum: 50V AC/DC
- Assembly Configuration: Connector to Connector, Overmolded
- Packaging Type: Bag
- Certifications: RoHS, REACH, UL 1571
- Status: Active, Not Low-Halogen, Not Contained SVHC
- Mates With: PicoEZmate Header 78171
Buy the Molex Series 36920 Pico-EZmate: 369200302
Purchase the Molex Series 36920 Pico-EZmate wire-to-board connector assembly online now. This 1.20mm pitch, 3-circuit, 150mm long connector features gold-plated contacts for durability. Its overmolded black design provides secure, reliable connections suitable for compact electronic devices. Compliant with RoHS and REACH standards, it employs crimp or compression termination interfaces. Ideal for industrial, consumer electronics, and automation applications, this connector offers easy assembly and high performance for demanding electrical environments.
Order your Molex Series 36920 Pico-EZmate cable assembly today and ensure reliable, compact connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 369200302?
You can click on the BUY or RFQ button to purchase 369200302 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 369200302?
You can download the 369200302 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 369200302?
MOLEX
