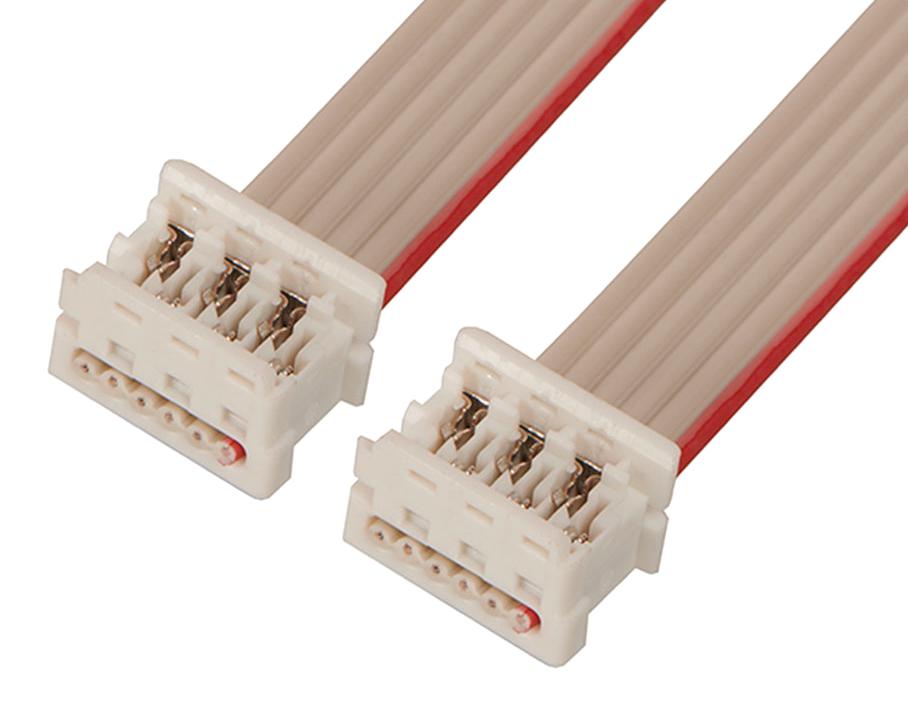

MOLEX 923150632 Ribbon Cable Assembly
The Picoflex ribbon cable assemblies are off-the-shelf components designed for various applications including consumer electronics and industrial automation. Featuring polarized connectors, a one-piece housing, and dual-beam contacts, they ensure secure, reliable electrical connections and easy inventory management. The assemblies include visual inspection windows, optional gold plating for durability, and insulation displacement termination. Compatible with Picoflex PF50 headers, rated up to 250V and 1.2A, and operating within -40°C to +105°C, these assemblies support up to 30 mating cycles. They utilize 28 AWG wire, with a 1.27mm pitch, suitable for high-reliability connections in demanding environments.
MOLEX 923150632 Ribbon Cable Assembly Specifications:
- Cable Length: 320.00mm
- Circuits (Loaded): 6
- Color - Resin: Natural
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating: Tin (Mating and Termination)
- Material - Resin: Polyester
- Net Weight: 4.062g
- Packaging Type: Bag
- Pitch - Mating Interface: 1.27mm
- Plating min - Mating: 2.032um
- Plating min - Termination: 2.032um
- Wire Size: 28 AWG
- Wire/Cable Type: PVC, Ribbon Cable
- Current - Max per Contact: 1.2A
- Voltage - Max: 250V
- Operating Temperature Range: -40°C to +105°C
- Number of Mating Cycles: Minimum 30
- Connector Type: Picoflex PF-50 Header compatible
- Waterproof / Dustproof: No
- Water Insulation Diameter: N/A
Buy the Buy Molex Picoflex Ribbon Cable Assembly Part Number 923150632 Online
Purchase the Molex Picoflex Ribbon Cable Assembly online today and ensure your electronics and automation projects benefit from reliable, secure, and high-quality connections. With a 320mm length, 6 circuits, and rated up to 250V and 1.2A, this assembly features polarized connectors, dual-beam contacts, and visual inspection windows for quality assurance. Compatible with Picoflex PF50 headers, it supports up to 30 mating cycles. The assembly includes insulation displacement termination, precise cable positioning, and durable tin-plated contacts, ideal for demanding industrial and consumer applications.
Order your Molex Series92315 Picoflex ribbon cable assembly with 6 circuits and 320mm length today and give your projects the reliable, high-quality connections they deserve.
Frequently Asked Questions
Where can I buy MOLEX 923150632?
You can click on the BUY or RFQ button to purchase 923150632 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923150632?
You can download the 923150632 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923150632?
MOLEX
