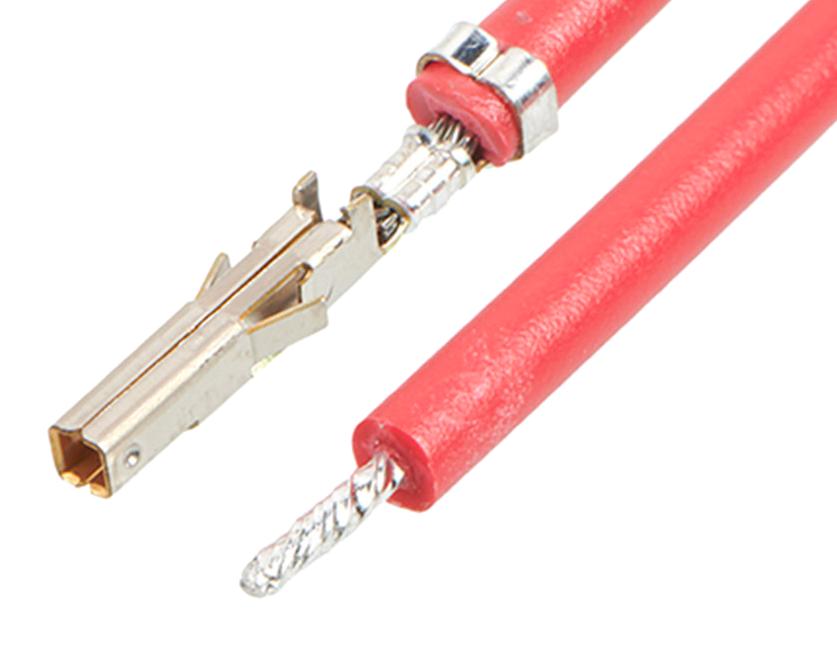

MOLEX 2153412213 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-2213 is a pre-crimped lead cable assembly designed for versatile applications including power distribution, wire-to-board connections, and wire-to-wire linking. It utilizes a Mini-Fit Jr. female connector on one end and a pigtail configuration on the other, offering a convenient and ready-to-use solution. The gold plating on the mating interface ensures excellent conductivity and corrosion resistance, while the tin plating on the termination interface facilitates secure crimp connections. This cable is ideal for industrial equipment, automotive systems, and other applications requiring robust and reliable power connections.
MOLEX 2153412213 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 225.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- net_weight: 3.908/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 18
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264559817
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_rohs: Not Contained Per D(2020)4578-DC
- halogen_free: Yes
- low_halogen: Not Low-Halogen
- sales_drawing: 2153411211-000
- use_with_housing: 5557, 44516, 42474, 43760
