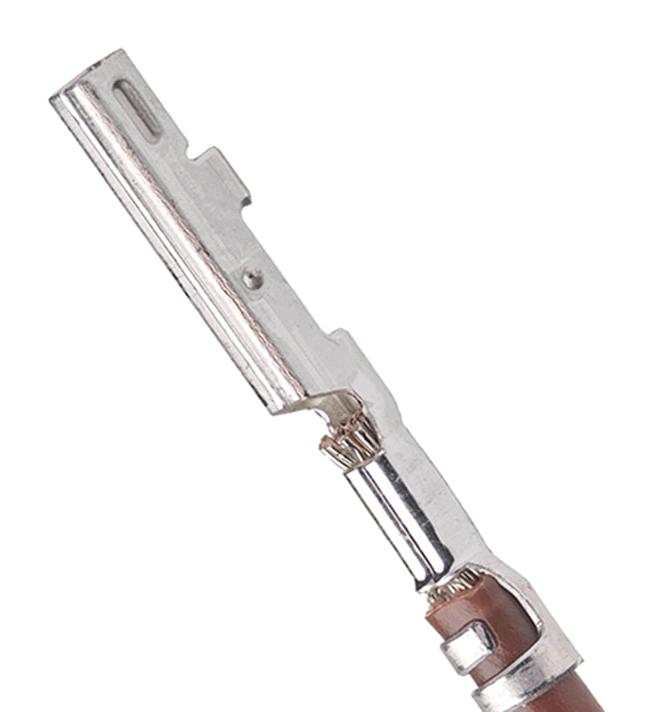

MOLEX 2077770001 Squba Sealed Terminal
The MOLEX 207777-0001 is a Squba sealed wire-to-wire crimp terminal designed for robust power and signal transmission in various industrial applications. This terminal, part of the 207777 series, offers a secure and reliable connection with a maximum current rating of 14.0A and a maximum voltage of 600V. The matte tin plating on both mating and termination surfaces ensures excellent conductivity and corrosion resistance. Compatible with 16 AWG wire and featuring a durable design with up to 25 mating cycles, this terminal is ideal for automotive, industrial equipment, and other demanding environments.
MOLEX 2077770001 Squba Sealed Terminal Specifications:
- overview: Squba Sealed Wire-to-Wire Connectors
- application: Power, Signal, Wire-to-Wire
- durability_mating_cycles: 25
- gender: Female
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin
- material_plating_termination: Matte Tin
- net_weight_g: 0.211
- plating_min_mating_um: 2.540
- plating_min_termination_um: 2.540
- wire_insulation_diameter_mm: 1.90-2.40
- wire_size_AWG: 16
- wire_size_mm2: N/A
- current_max_per_contact_a: 14.0
- voltage_max_v: 600
- crimp_quality_equipment: Yes
- datasheet_order_no: 987651-7401
- upc: 191130144785
