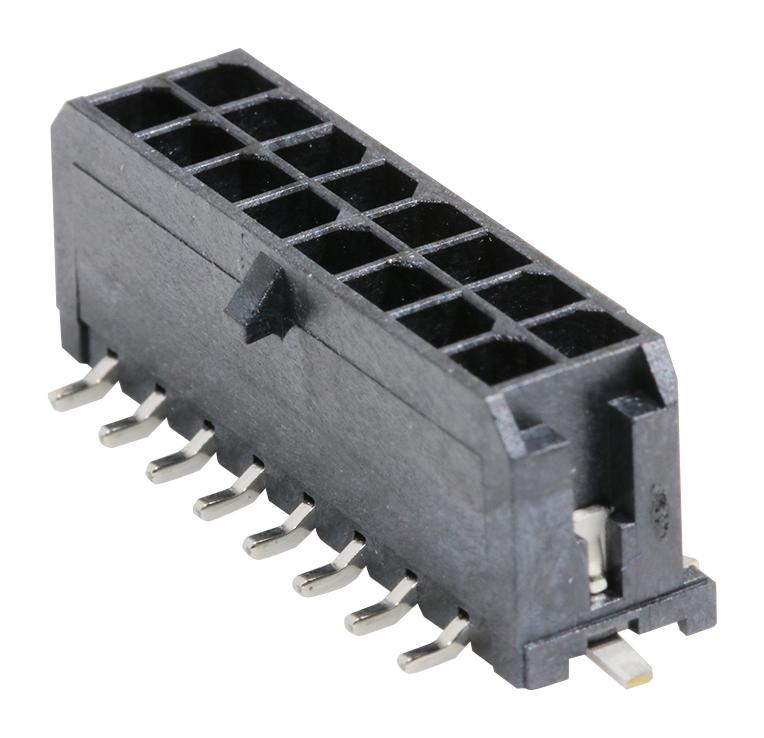

MOLEX 430451620 Power Connector
The Micro-Fit 3.0 Vertical Header with 3.00mm pitch offers a reliable wire-to-board connection suitable for high-temperature applications. Designed with dual rows and 16 circuits, it features gold plating and a solder tab for secure attachment. Made from high-temperature thermoplastic, it withstands operating temperatures from -40°C to +105°C, ensuring durability and safety. Compliant with UL and CSA standards, this connector is glow-wire capable, flame-resistant, and perfect for power and electronic device applications requiring robust and safe connections.
MOLEX 430451620 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 16
- Material: High-temperature thermoplastic
- Operating Temperature: -40°C to +105°C
- Current per Contact: 8.5A
- Voltage: 600V
- Color - Resin: Black
- Mating Height: 1.60mm
- Surface Mount: Yes
- Glow-Wire Capable: Yes
- Flammability: Meets IEC 60695-2-13 and IEC 60695-2-12 standards
- Durability: Designed for multiple mating cycles
- Material - Metal: Not specified (likely contact plugs), Plating: Gold
- Packaging: Embossed tape on reel
- Rated for high-temperature and flame-resistance standards
Buy the Molex Series Micro-Fit 3.0 Power Connector: 0430451620
Purchase the Molex Micro-Fit 3.0 Power Connector today for secure, high-performance power connections. With a 3.00mm pitch, 16 circuits, and gold plating, this connector ensures reliable contact and safety. It is made from high-temperature thermoplastic, resistant to heat up to +105°C, and complies with UL and CSA standards. Suitable for power and electronic device applications requiring durable, flame-resistant, and glow-wire capable connectors. Order now to experience dependable performance and easy installation in your projects.
Get Molex 0430451620 today—built for precision and long-lasting durability in high-temperature power applications.
Frequently Asked Questions
Where can I buy MOLEX 430451620?
You can click on the BUY or RFQ button to purchase 430451620 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430451620?
You can download the 430451620 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430451620?
MOLEX
