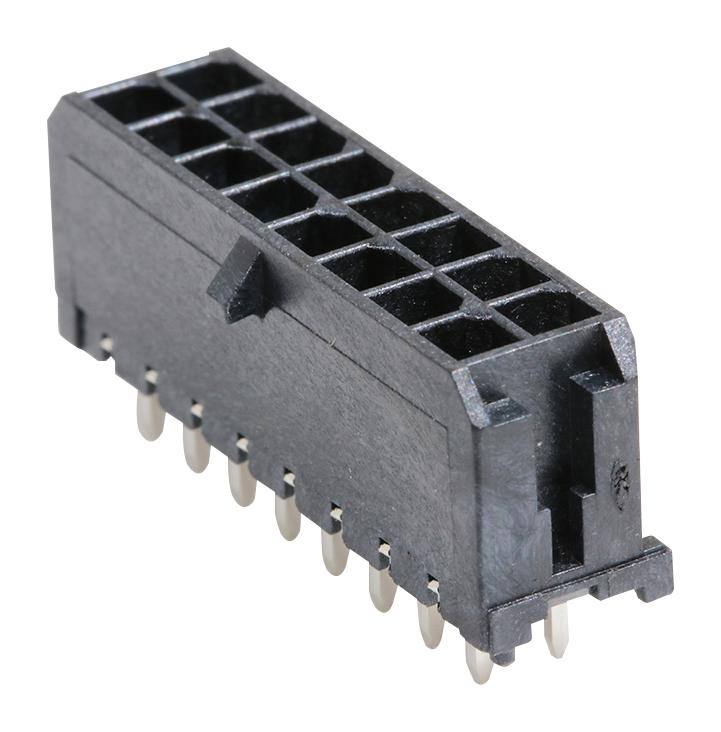

MOLEX 430451627 Micro-Fit Connector
The Micro-Fit 3.0 Vertical Header offers a compact 3.00mm pitch with dual rows and 16 circuits, designed for power and wire-to-board applications. Constructed from high-temperature thermoplastic, it features a PCB locator and retention for secure mounting, with a maximum of 8.5A current and 600V voltage ratings. The fully-mated height is 1.60mm, compatible with surface mount and through-hole soldering, and supports up to 260 mating cycles. Its glow-wire capable design meets stringent fire safety standards, ensuring reliability in demanding environments.
MOLEX 430451627 Micro-Fit Connector Specifications:
- Material: High Temperature Thermoplastic
- Color - Resin: Black
- Net Weight: 2.196 g
- Number of Rows: 2
- Circuit Count: 16
- Maximum Circuits: 16
- Pitch - Mating Interface: 3.00 mm
- Lock to Mating Part: None
- Mated Height: 1.60 mm
- PCB Tail Length: 3.18 mm
- Temperatures: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Surface Mount Compatible: Yes
- Termination Style: Through Hole
- Flammability: Glow-Wire Capable
- Glow Wire Ignition Temperature: ≥775°C
- Glow Wire Flammability Index: >850°C
- Durability: Up to 260 mating cycles
- Package Type: Tray
Buy the Buy Molex Micro-Fit 3.0 Vertical Header Part Number 0430451627 Online
Order the Molex Micro-Fit 3.0 connector part number 0430451627 online today. This high-quality vertical header features 16 circuits, a 3.00mm pitch, and robust glow-wire capability, ensuring safety and durability in power and wire-to-board applications. Constructed from high-temperature thermoplastic for resistance to heat, it supports up to 8.5A and 600V, with a compact 1.60mm height, and can withstand up to 260 mating cycles. Perfect for demanding electronic assemblies needing reliable and safe power connections with secure PCB retention and surface mount compatibility.
Get Molex Micro-Fit 3.0 part 0430451627 today—built for reliable power connections with high-temperature and glow-wire capability.
Frequently Asked Questions
Where can I buy MOLEX 430451627?
You can click on the BUY or RFQ button to purchase 430451627 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430451627?
You can download the 430451627 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430451627?
MOLEX
