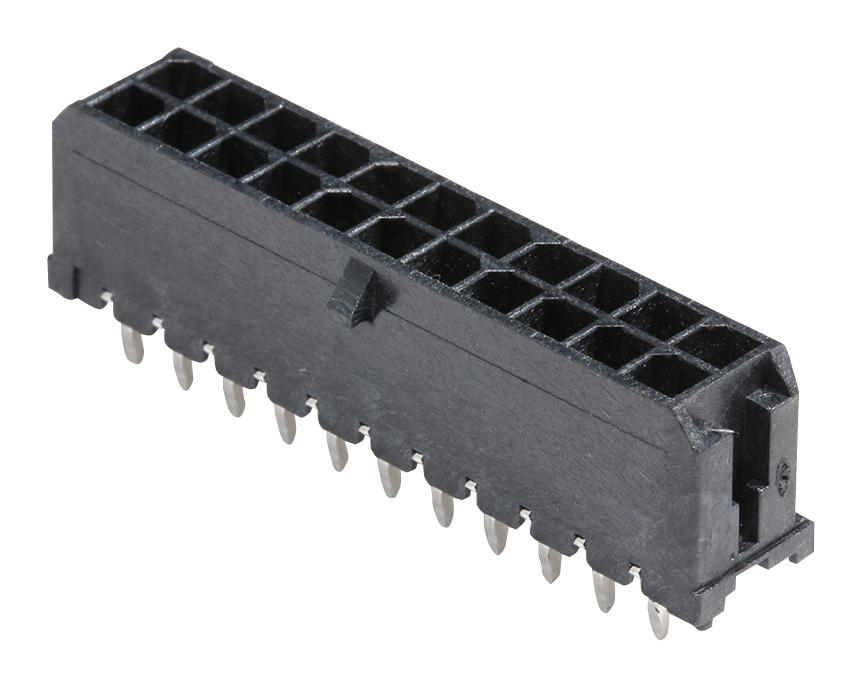

MOLEX 430452213 Micro-Fit 3.0 Vertical Header
The Molex Micro-Fit 3.0 Vertical Header is a high-temperature wire-to-board connector with a 3.00mm pitch, dual row, and 22 circuits. Manufactured from halogen-free, glow wire capable thermoplastic with a maximum operating temperature of -40°C to +105°C, it features a fully shrouded, stackable design with a PCB retention and locator system. Suitable for power applications up to 8.5A and 600V, this connector ensures safety and durability through its flame-retardant and high-temperature rated materials, ideal for electronics and industrial projects requiring reliable, high-current connections.
MOLEX 430452213 Micro-Fit 3.0 Vertical Header Specifications:
- Material: High Temperature Thermoplastic
- Color - Resin: Black
- Circuits: 22
- Circuits (Loaded): 8.5A
- Voltage - Maximum: 600V
- Pitch: 3.00mm
- Temperature Range: -40°C to +105°C
- Termination: Through Hole - Kinked Pin
- Mated Height: 3.00mm
- Number of Rows: 2
- Orientation: Vertical
- PCB Thickness - Recommended: 1.60mm
- Surface Mount Compatible (SMC): Yes
- Shrouded: Yes
- Stackable: Yes
- Glow-Wire Capable: Yes
- Flammability: UL 94V-0
- Durability (Mating Cycles Max): 260
Buy the Molex Series Micro-Fit 3.0 Power Connector: 0430452213
Buy the Molex Micro-Fit 3.0 Vertical Header online today and enjoy a reliable, high-temperature, halogen-free connector designed for power applications up to 8.5A and 600V. Its durable thermoplastic body withstands operating temperatures from -40°C to +105°C, ensuring safety and performance in industrial, electronics, and power systems. Featuring a 3.00mm pitch, dual row, shrouded design, and PCB retention, this connector provides secure installation, stackability, and flame resistance. Perfect for engineers seeking quality, safety, and ease of assembly in complex power and circuit board applications.
Order your Molex Series Micro-Fit 3.0 0430452213 connector today and ensure reliable power connections for your industrial or electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 430452213?
You can click on the BUY or RFQ button to purchase 430452213 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430452213?
You can download the 430452213 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430452213?
MOLEX
