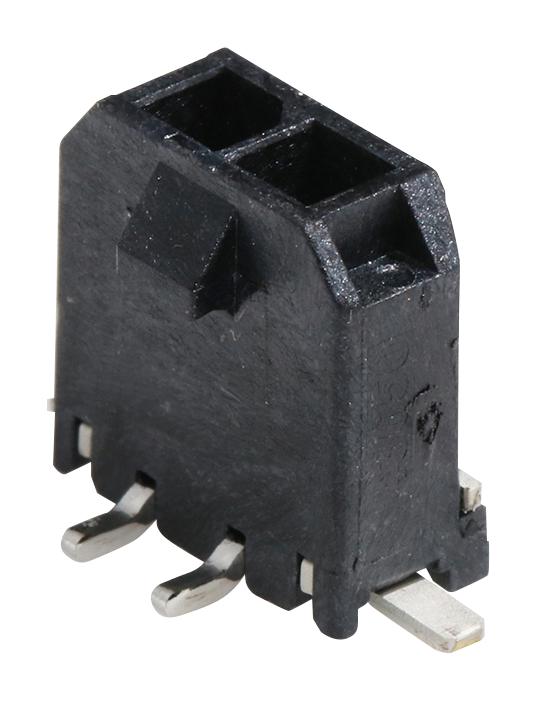

MOLEX 436500226 Power Header
The Micro-Fit 3.0 Vertical Header is a reliable 3.00mm pitch, single-row connector designed for power and wire-to-board applications. Crafted from flame-retardant high-temperature thermoplastic with UL 94V-0 rating, it features gold-plated contacts, solder tabs, and robust brass material. Capable of withstanding operating temperatures from -40°C to +105°C, it supports up to 8.5A current and 600V voltage. Suitable for high-temperature environments with 30 mating cycles, this shrouded, stackable connector is ideal for various industrial, automation, and electronic systems requiring durable and safe connections.
MOLEX 436500226 Power Header Specifications:
- Pitch: 3.00mm
- Number of Circuits: 2
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): 30
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Packaging: Embossed Tape on Reel
- Surface Mount: Yes
- Dimensions: Max. height 17.27mm, pitch 3.00mm
- Process Temperature max.: 260°C
- Max. Cycles at Max. Process Temperature: 30
Buy the Molex 043650 U–2013 Reliable Power Connector for Industrial Applications
Discover the durable and high-quality Power Header designed for power and industrial applications. With a 3.00mm pitch, gold-plated contacts, and high temperature thermoplastic construction, it supports up to 8.5A and 600V, ensuring reliable performance. Its stackable, shrouded design supports 30 mating cycles, making it ideal for demanding environments. Purchase online now to enhance your electronic, automation, or industrial systems with a proven, flame-retardant connector built for long-lasting, secure connections in various temperature conditions.
Get Molex 043650 today—built for precision and long-lasting durability in power and wire-to-board systems.
Frequently Asked Questions
Where can I buy MOLEX 436500226?
You can click on the BUY or RFQ button to purchase 436500226 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500226?
You can download the 436500226 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500226?
MOLEX
