MOLEX 436500313 Micro-Fit Connector
The Micro-Fit 3.0 Right-Angle Header is a high-performance connector designed for wire-to-board applications with a 3.00mm pitch. Constructed from flame-retardant high-temperature thermoplastic and plated with gold on the mating surfaces, it supports up to 30 mating cycles. Certified for UL and CSA standards, it withstands temperatures from -40°C to +105°C and is glow-wire capable with a GWIT of 775°C. Suitable for applications requiring reliable electrical connections with maximum current of 8.5A and voltage of 600V, featuring a compact, shrouded, stackable design.
MOLEX 436500313 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 3
- Color - Resin: Black
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Brass
- Plating - Mating: Gold
- Plating - Termination: Tin
- Durability (mating cycles max): 30
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Glow Wire Ignition Temperature: 775°C
- Voltage Rating: 600V
- Current - Maximum per Contact: 8.5A
- Temperature Range: -40°C to +105°C
- Dimensions: Mating interface pitch 3.00mm, mated height 6.98mm
- Packaging: Embossed Tape on Reel
- Orientation: Right Angle
- Stackable: No
- Shrouded: Yes
- PCB Thickness - Recommended: 1.60mm
- Process Capability: Reflow, 260°C max, up to 100 cycles

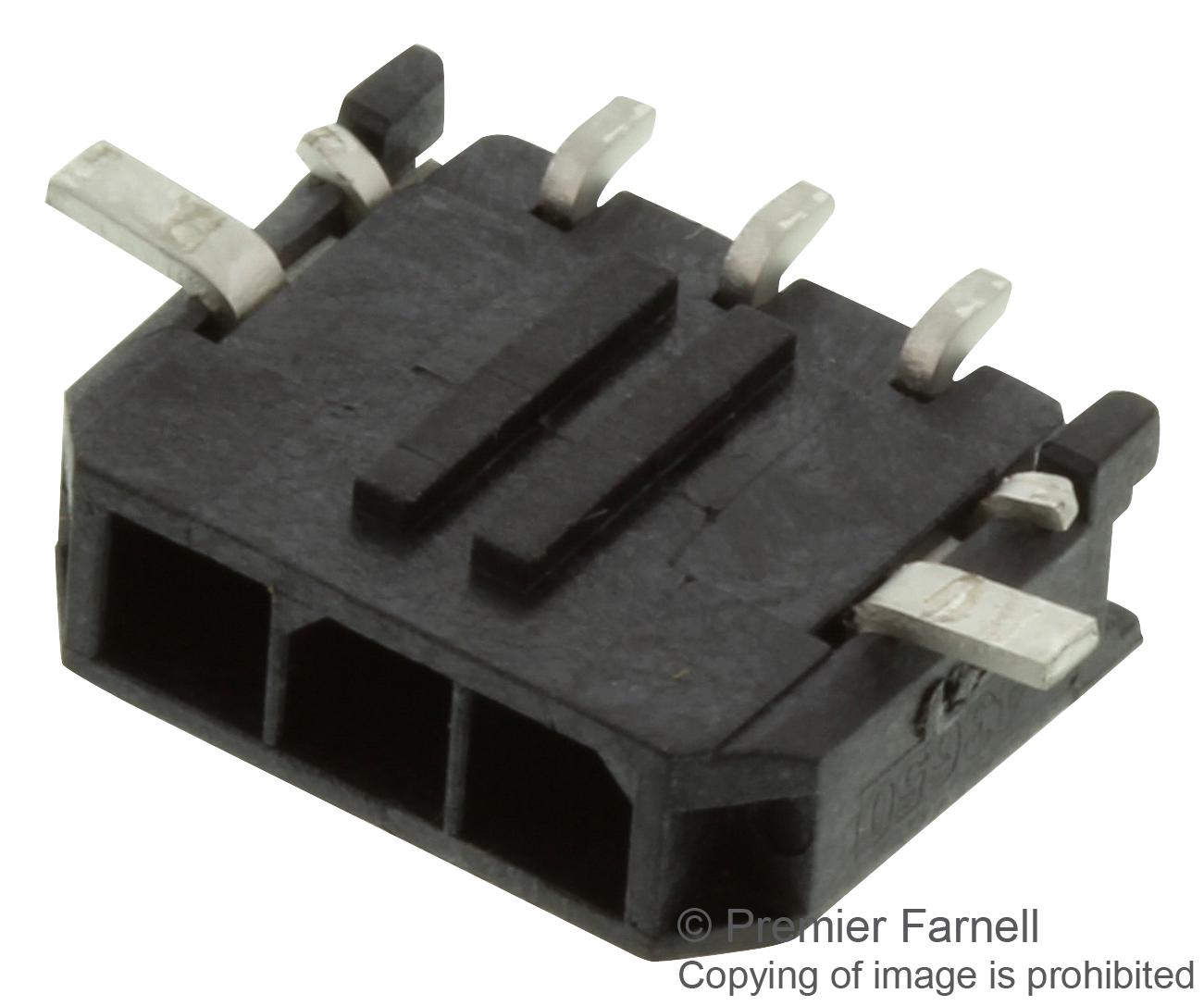

Buy the Buy Molex Micro-Fit 3.0 Right-Angle Header Part Number 0436500313 Online
Order the Molex Micro-Fit 3.0 Right-Angle Connector now for your electronic projects. Built with high-quality materials, it ensures dependable electrical connections with a compact design. Certified for safety standards, this connector supports up to 8.5A and 600V, making it ideal for various industrial and consumer applications. Its 3 circuits offer flexibility for wire-to-board connections, while the gold plating guarantees corrosion resistance and precise contact. Enhance your electrical system's performance by purchasing this durable, reliable, and glow-wire capable connector online today.
Get Molex 0436500313 today—designed for reliable connections and long-lasting durability in electrical assemblies.
