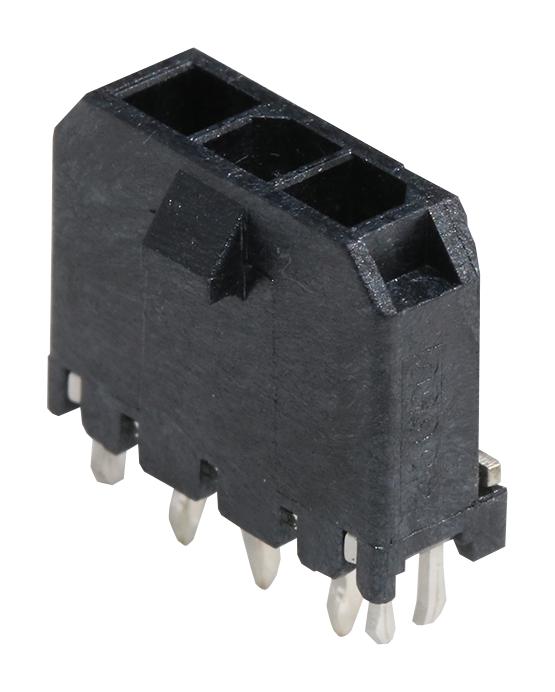

MOLEX 436500320 Micro-Fit 3.0 Vertical Header
The MOLEX 43650-0320 is a Micro-Fit 3.0 vertical header, part of the 43650 series, designed for robust power and wire-to-board connections. This header features a 3.00mm pitch, a single-row layout, and accommodates 3 circuits. It incorporates a press-fit metal retention clip for secure PCB mounting and utilizes gold plating on the mating interface for enhanced conductivity and tin plating on the termination interface for reliable solderability. The header is constructed from high-temperature thermoplastic and brass, ensuring durability and performance in demanding environments. It is glow-wire capable and compliant with international safety standards, making it suitable for a wide range of applications including household and similar electrical appliances.
MOLEX 436500320 Micro-Fit 3.0 Vertical Header Specifications:
- Product Family: PCB Headers
- Application: Power, Wire-to-Board
- Circuits (Loaded): 3
- Circuits (maximum): 3
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Plating Mating: Gold
- Plating Termination: Tin
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Number of Rows: 1
- Orientation: Vertical
