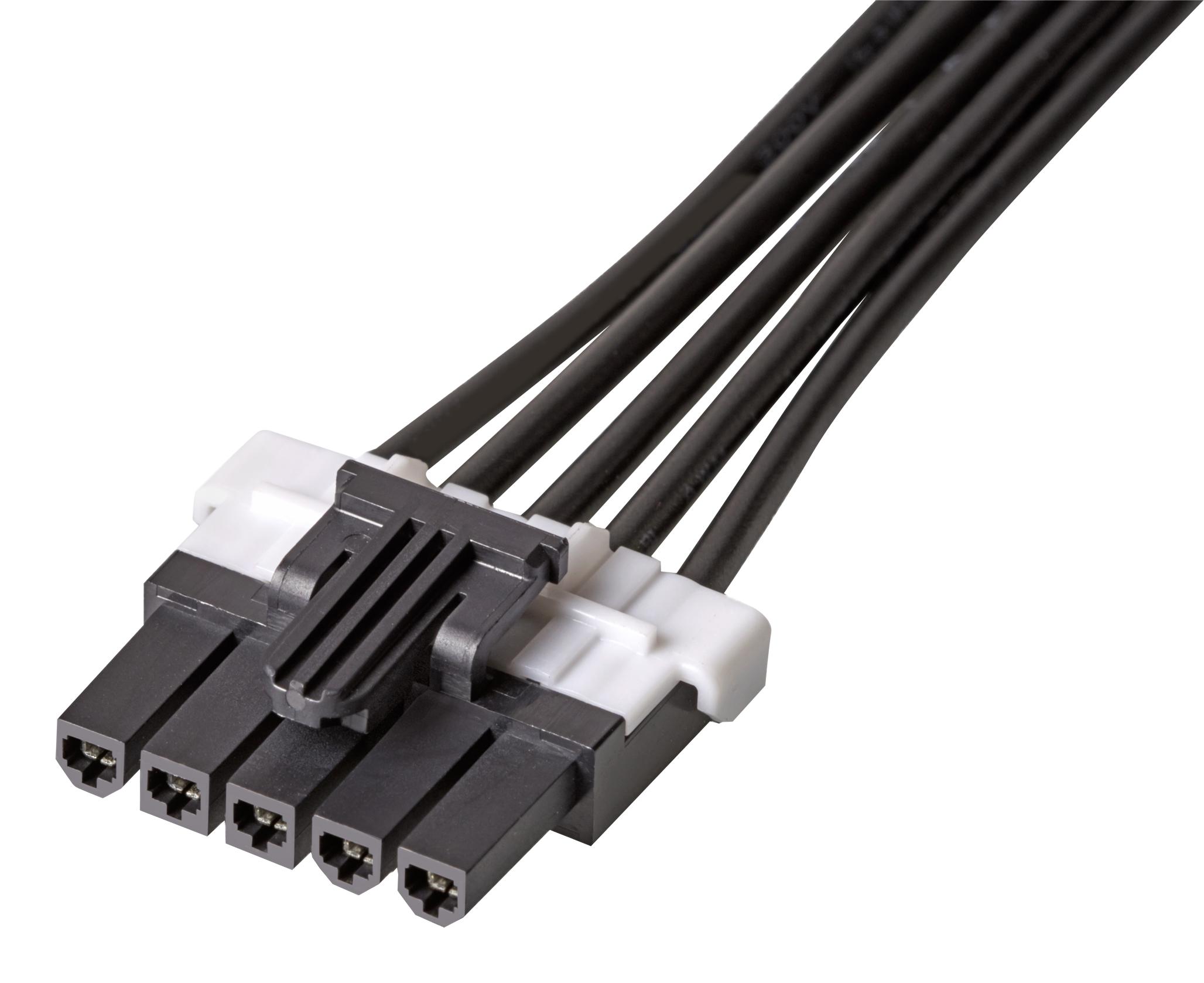

MOLEX 1451350501 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0501 is an off-the-shelf discrete cable assembly designed for reliable power transmission in various applications. This assembly connects Mini-Fit TPA2 connectors at both ends, providing a secure and efficient connection for wire-to-board and wire-to-wire applications. Constructed with phosphor bronze and nylon materials, and featuring tin plating for both mating and termination interfaces, this cable assembly ensures excellent conductivity and durability. It is RoHS compliant and suitable for use in a wide range of industrial and commercial settings.
MOLEX 1451350501 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2 Both Ends
- cable_length: 150.00mm
- circuits_loaded: 5
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 19.326/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_maximum_per_contact: 11.0A
- voltage_maximum: 600V AC/DC
- material_info: RoHS Compliant, REACH SVHC Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit TPA2 Plug Housing 200471, 200488; Mini-Fit Jr. Plug Housing 5559; Mini-Fit Jr. Headers 5566, 5569
- drawing_number: 4000095328-000
