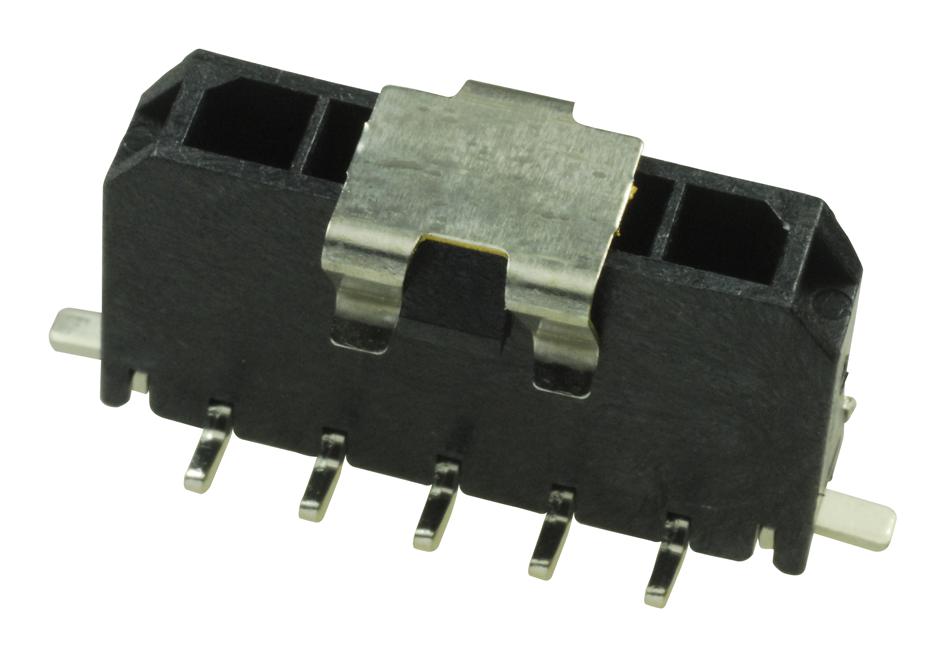

MOLEX 436500524 Micro-Fit 3.0 Vertical Header
The MOLEX 43650-0524 Micro-Fit 3.0 Vertical Header is a robust and reliable connector solution for power and wire-to-board applications. Designed with a 3.00mm pitch and a single-row configuration, this header accommodates 5 circuits and is constructed with high-temperature thermoplastic resin and brass material with tin plating. It's Glow-Wire Capable, meeting IEC 60335-1 safety standards, and features a polarized design for secure PCB mounting. Suitable for a wide range of industrial and consumer electronics, the 43650-0524 ensures a dependable connection with a maximum current rating of 8.5A and a maximum voltage of 600V.
MOLEX 436500524 Micro-Fit 3.0 Vertical Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Application: Power, Wire-to-Board
- Circuits (Loaded): 5
- Circuits (maximum): 5
- Color: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 1.082/g
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface Style: Surface Mount
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Duration at Max Process Temperature: 030 seconds
- Lead-free Process Capability: REFLOW
- Max Cycles at Max Process Temperature: 003
- Process Temperature max C: 260°C
