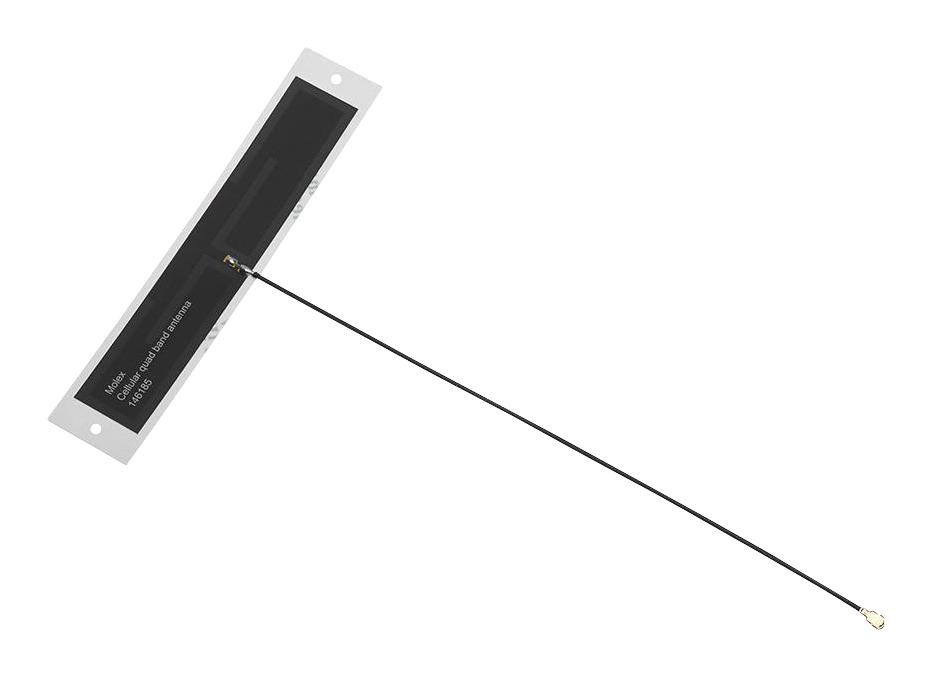

MOLEX 1461850300 Cellular Wi-Fi Antenna
The Molex Multi-band Cellular-Wi-Fi Antenna is a reliable stand-alone cellular antenna designed for multi-band applications, including cellular and Wi-Fi, with a bandwidth from 824 MHz to 6000 MHz. It features omnidirectional radiation with a linear polarization pattern and a compact width of 15.00mm. The antenna comes with a 300.00mm cable, ensuring flexible installation. Its peak gains are 1.1 dBi at 824 MHz, 2.6 dBi at 1710 MHz, and 3.0 dBi at 3G frequencies. The antenna is RoHS compliant, halogen-free, and suitable for various industrial and communication applications, providing over 56% efficiency at 3G and excellent return loss.
MOLEX 1461850300 Cellular Wi-Fi Antenna Specifications:
- Antenna Type: Cellular and Wi-Fi Multi-band
- Dimensions: Width 15.00mm, Length 84.00mm
- Cable Length: 300.00mm
- Material: Halogen-Free, Environmental Compliance RoHS
- Radiation Pattern: Omnidirectional
- Polarization: Linear
- Frequency Range: 824 MHz to 6000 MHz
- Band#1: 824-960 MHz, Peak Gain: 1.1 dBi
- Band#2: 1710-2700 MHz, Peak Gain: 2.6 dBi
- Band#3: 3000-6000 MHz, Peak Gain: 3.0 dBi
- Return Loss: <-4, <-6 dB
- Total Efficiency: >56% at 3G, >59% at 824 MHz, >61% at 1710 MHz
- Application: Cellular and Wi-Fi wireless communication
- Connector: Cable, not specified
- Environmental: RoHS, Halogen-Free
- Certificate: RoHS compliant
Buy the Molex 1461850300 – Reliable Cellular and Wi-Fi Antenna for Industrial Applications
Enhance your wireless communication systems with the Molex Multi-band Cellular Wi-Fi Antenna. Designed for industrial applications, this omnidirectional antenna offers excellent coverage, high efficiency, and reliable performance across multiple frequency bands from 824 MHz to 6000 MHz. Its compact size, 15mm width, and 300mm cable enable flexible installation in various settings. RoHS compliant and halogen-free, it ensures safety and environmental compliance. Improve connectivity for cellular and Wi-Fi devices with this high-quality antenna perfect for demanding industrial environments.
Order your Molex 1461850300 series multi-band cellular Wi-Fi antenna today and enhance your wireless communication projects with dependable high-performance support.
Frequently Asked Questions
Where can I buy MOLEX 1461850300?
You can click on the BUY or RFQ button to purchase 1461850300 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1461850300?
You can download the 1461850300 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1461850300?
MOLEX
