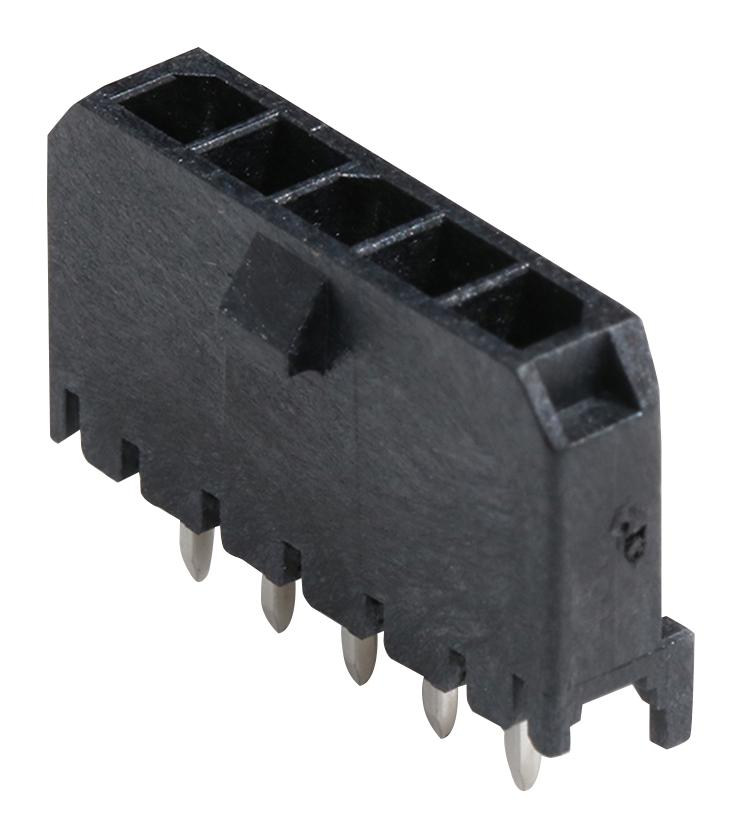

MOLEX 436500527 Micro-Fit 3.0 Vertical Header
The MOLEX 43650-0527 Micro-Fit 3.0 Vertical Header is a robust connector solution for power and wire-to-board applications in various industries. Designed with a 3.00mm pitch and 5 circuits, this header offers a secure and reliable connection. The polarized PCB design ensures correct orientation, while the tin plating provides excellent solderability. It is glow-wire capable, meeting stringent safety standards, and RoHS compliant, demonstrating commitment to environmental responsibility. Suitable for applications requiring high-temperature resistance and secure connections.
MOLEX 436500527 Micro-Fit 3.0 Vertical Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 5 Circuits, with PCB Polarizing Peg, Tin, Glow-Wire Capable, Black
- Circuits (Loaded): 5
- Circuits (maximum): 5
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Lock to Mating Part: Yes
- Mated Height: 17.27mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.18mm
- PCB Locator: Yes
- PCB Retention: None
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Duration at Max. Process Temperature (seconds): 030
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
