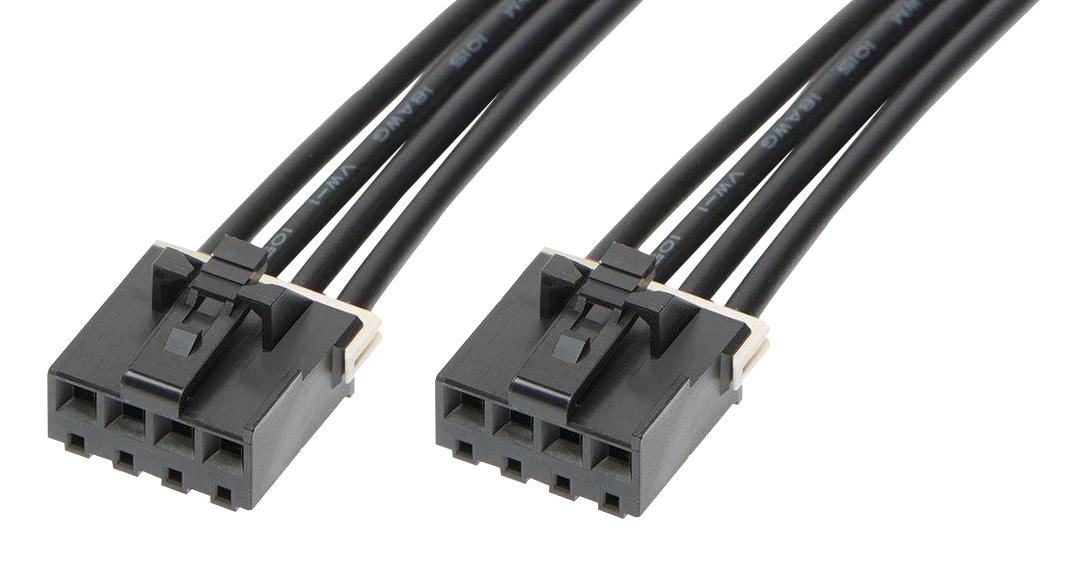

MOLEX 369210410 Cable Assembly
The LINK 396-to-L1NK 396 off-the-shelf cable assembly features a 3.96mm pitch, single row configuration with 4 circuits. Designed with an overmolded construction, it offers reliable connectivity with female-female connectors, a length of 1000mm, and a black resin for durability. Suitable for various electronic applications, this assembly supports a maximum current of 13.0A and a voltage of 600V DC. Made from copper alloy with tin plating for both mating and termination points, ensuring excellent electrical performance and corrosion resistance. Compatible with LINK 396 headers and designed for robust electrical connections in industrial or consumer electronic projects.
MOLEX 369210410 Cable Assembly Specifications:
- Pitch: 3.96mm
- Number of Circuits: 4
- Cable Length: 1000.00mm
- Color: Black
- Connector Gender: Female-Female
- Assembly Configuration: Overmolded connector to connector
- Material - Metal: Copper Alloy
- Material - Plating Mating & Termination: Tin
- Wire Insulation Diameter: 3.12mm
- Wire Size AWG: 18
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 600V DC
- Net Weight: 68.398g
- Packaging: Bag
- RoHS & REACH Compliant: Yes
- Halogen-Free: No
- Status: Active
- Series: 36921
- Reference Drawing Number: 369210400-000
Buy the Molex Series 36921 LINK Cable Assembly: 369210410
Purchase the Molex Series 36921 LINK cable assembly now and benefit from a durable, reliable connection solution with a 3.96mm pitch, 4 circuits, and a 1-meter length. Designed for easy installation with overmolded connectors, it supports up to 13A and 600V DC to meet demanding industrial and consumer electronic needs. Made from high-quality copper alloy with tin plating, this assembly guarantees excellent electrical performance and corrosion resistance. Ideal for a variety of applications, it offers quick, secure connectivity for your projects. Buy online today and enhance your systems with trusted performance.
Order your Molex Series 36921 LINK cable assembly today and ensure reliable, high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 369210410?
You can click on the BUY or RFQ button to purchase 369210410 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 369210410?
You can download the 369210410 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 369210410?
MOLEX
