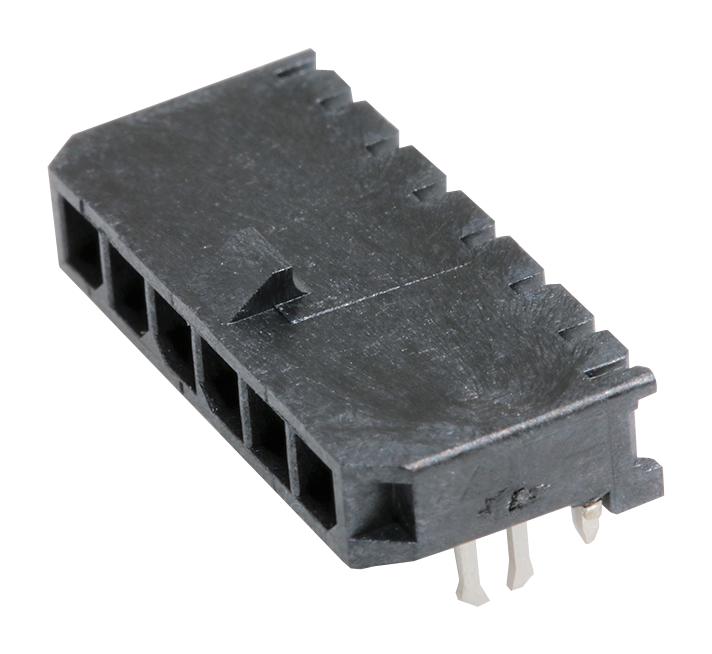

MOLEX 436500604 Micro-Fit 3.0 Header
The MOLEX 43650-0604 is a Micro-Fit 3.0 connector designed for robust and reliable wire-to-board connections. This right-angle header features a 3.0mm pitch and 6 circuits, making it suitable for a range of power applications. Constructed with high-temperature thermoplastic and gold-plated mating contacts, it offers excellent durability and conductivity. The header is glow-wire capable, meeting stringent safety standards for household and similar electrical appliances. Its right-angle design simplifies PCB layout and reduces space requirements in compact electronic devices. It is RoHS compliant and mates with Micro-Fit 3.0 receptacle housings.
MOLEX 436500604 Micro-Fit 3.0 Header Specifications:
- Part Number: 0436500604
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 6 Circuits
- Series: 43650
- Application: Power, Wire-to-Board
- Circuits (Loaded): 6
- Circuits (maximum): 6
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 1.232/g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Lead-free Process Capability: SMC&WAVE
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
