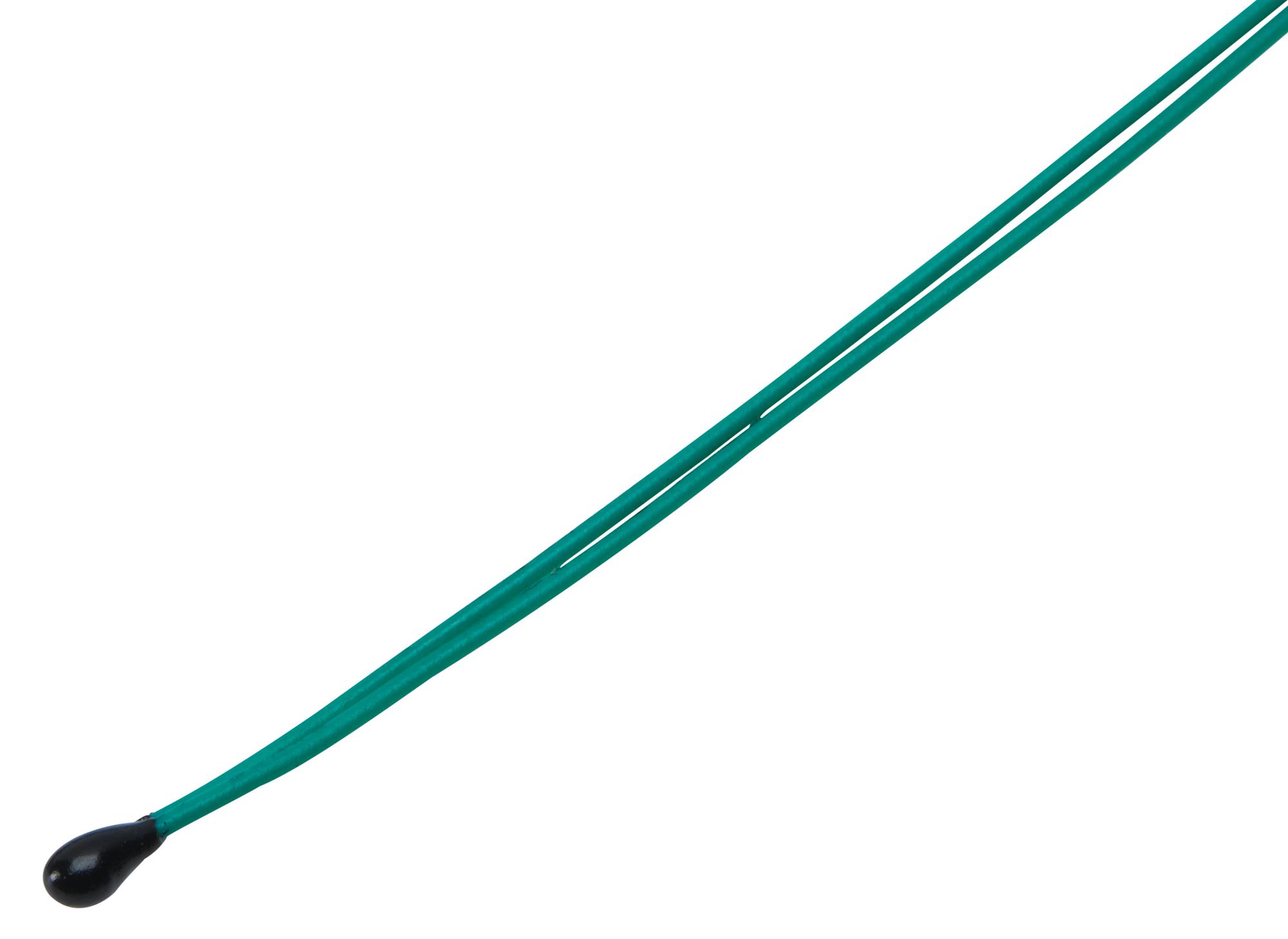

MOLEX 2152703605 NTC Temperature Sensor Cable
The MOLEX 215270-3605 is a temperature sensor cable assembly utilizing an NTC thermistor. This cable is epoxy coated for environmental protection and is designed for single-ended applications. It offers a 40.00mm length, a beta value of 3600, and a resistance of 10k ohms at 25°C with a 1% tolerance, making it suitable for various temperature monitoring and control systems in industrial and commercial settings. The cable is RoHS compliant and comes in a green resin color.
MOLEX 2152703605 NTC Temperature Sensor Cable Specifications:
- overview: Temperature Sensor Cable Assemblies
- description: Epoxy Coated NTC Thermistor Cables
- length: 40.00mm
- beta_value: 3600
- resistance_at_25c: 10k ohms
- resistance_tolerance: 1%
- color: Green
- cable_length: 40.00mm
- circuits_loaded: 1
- wire_size_awg: 28
- upc: 195842044562
- net_weight: 0.150/g
- packaging_type: Bag Single Ended
- material: Epoxy Coated NTC Thermistor
- application: Temperature Sensing
Buy the 215270-3605 MOLEX NTC Temperature Sensor Cable | myMectronic
Purchase the MOLEX 215270-3605 NTC Temperature Sensor Cable securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2152703605?
You can click on the BUY or RFQ button to purchase 2152703605 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2152703605?
You can download the 2152703605 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2152703605?
MOLEX
