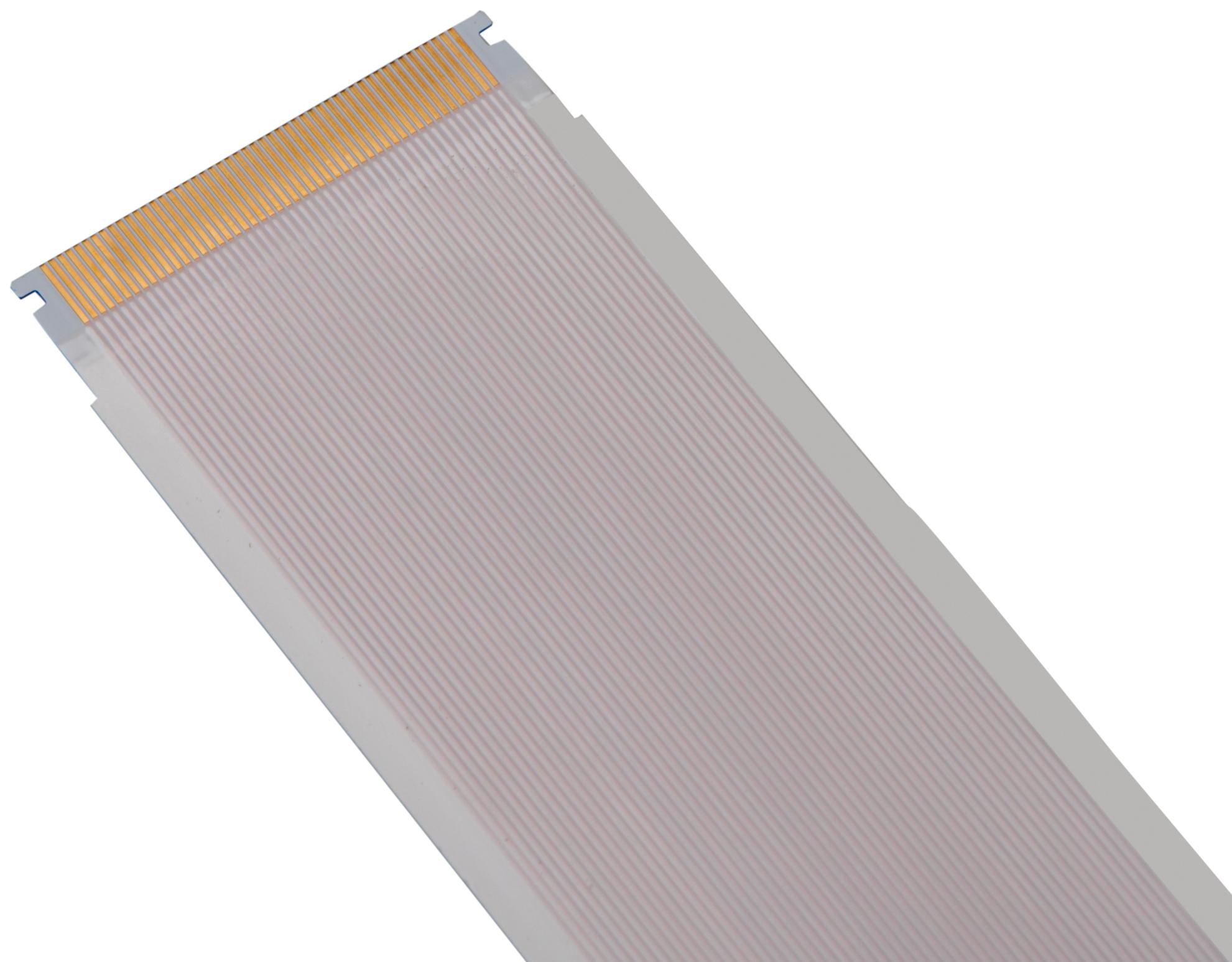

MOLEX 150160655 FFC Cable Jumper
This Premo-Flex FFC jumper features a 0.50mm pitch, gold-plated contacts for durability, and a single-step push-button lock for quick, secure connections. Designed to connect with Molex’s Easy-On One-Touch connectors, it ensures reliable mating in consumer electronics, medical devices, data, automotive, and industrial applications. The jumper supports a cable length of 152.00mm, operates from -40°C to +105°C, and handles up to 0.3A per circuit. Its design includes ears for secure attachment, with same-side contacts (Type A) for streamlined wiring and signal integrity.
MOLEX 150160655 FFC Cable Jumper Specifications:
- Pitch: 0.50mm
- Cable Length: 152.00mm
- Circuits: 60
- Contact Material: Gold-plated
- Operating Temperature Range: -40°C to +105°C
- Current per Contact: 0.3A
- Connector Type: Same side contacts (Type A)
- Packaging: Bag
- Material: Flat-flexible cable
- RoHS Compliance: Yes
- Halogen-Free: Low-Halogen
- Mates With: Easy-On FFC/FPC One-Touch Connector series 200485
Buy the Molex Series 15016 FFC Cable Jumper: 0150160655
Order the Molex FFC Cable Jumper with 0.50mm pitch and gold-plated contacts designed for reliable, quick connections. Its single-step push-button lock ensures secure mating for applications in consumer electronics, medical devices, automotive, and industrial sectors. The 152mm cable length offers flexibility, while the durable contacts operate efficiently from -40°C to +105°C, supporting up to 0.3A per circuit. Ideal for streamlined wiring with secure attachment ears, this jumper guarantees signal integrity and long-lasting performance. Buy online now for quality and reliability.
Get Molex 0150160655 today—built for quick, secure connections and durability in electronic and industrial applications.
Frequently Asked Questions
Where can I buy MOLEX 150160655?
You can click on the BUY or RFQ button to purchase 150160655 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 150160655?
You can download the 150160655 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 150160655?
MOLEX
