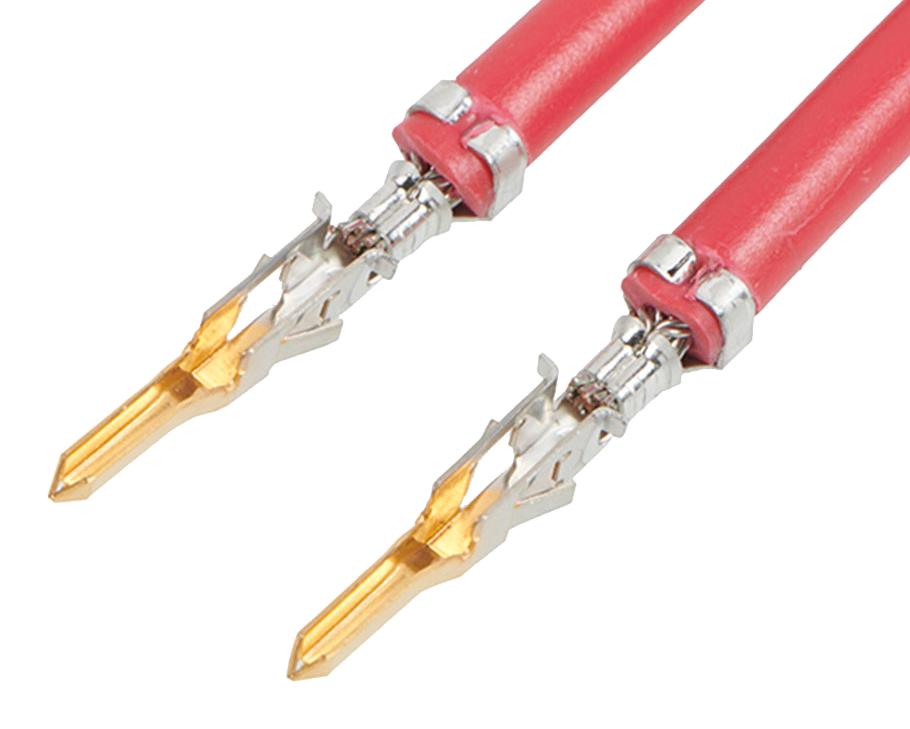

MOLEX 2153422224 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215342-2224 is a pre-crimped lead assembly designed for power and wire-to-wire applications. It utilizes Mini-Fit Jr. connectors on both ends, ensuring compatibility with a wide range of systems. The gold plating on the mating interface provides excellent conductivity and corrosion resistance, while the tin plating on the termination interface facilitates secure crimp connections. This assembly is ideal for applications requiring a pre-terminated solution, simplifying installation and reducing assembly time.
MOLEX 2153422224 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215342
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr. Both Ends
- cable_length: 300.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- net_weight: 6.940/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)4578-DC
- halogen_free_status: Not Low-Halogen
- upc: 193264560073
