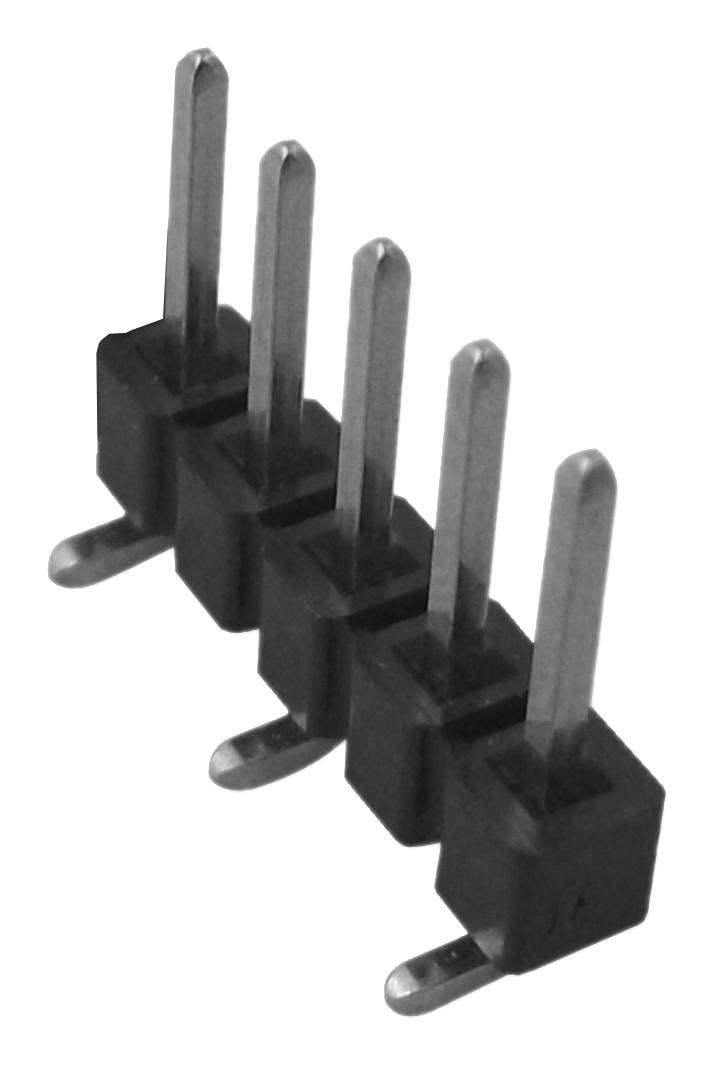

MOLEX 878980526 C-Grid PCB Connector
The C-Grid / SL Header is a surface-mount, breakaway, vertical connector designed for PCB board-to-board applications. It features 5 circuits with tin overall plating, made from copper alloy, and is RoHS compliant. Suitable for reliable signal connections, it supports a maximum current of 3.0A and voltage of 250V, operating within a temperature range of -55°C to +105°C. Packaged in tubes, it offers easy installation and high durability for industrial and electronics assembly uses.
MOLEX 878980526 C-Grid PCB Connector Specifications:
- Circuits: 5
- Maximum Circuits: 5
- Color: Black
- Flammability: UL 94V-0
- Material: Copper Alloy
- Plating: Tin
- Resin: Nylon
- Net Weight: 0.277 grams
- Orientation: Vertical
- Temperature Range: -55°C to +105°C
- Current: 3.0A
- Voltage: 250V
- Process Temperature Max: 260°C
- Process Cycles at Max Temperature: 003
- Packaging: Tube
- Pitch: 2.54mm
Buy the Buy Molex C-Grid Connector Part Number 0878980526 Online
Secure your electronics projects with the high-quality C-Grid PCB connector, featuring 5 circuits, RoHS compliance, and durable tin plating. Designed for surface-mount applications, it provides reliable signal transfer and easy assembly in industrial and commercial electronics. Its vertical orientation supports space-efficient designs, while the temperature range of -55°C to +105°C ensures operation in diverse environments. Packaged in tubes for convenient handling, this connector is ideal for engineers seeking dependable PCB interconnect solutions that meet industry standards.
Buy Molex 0878980526 now and experience unmatched reliability and high-quality PCB board-to-board connections.
