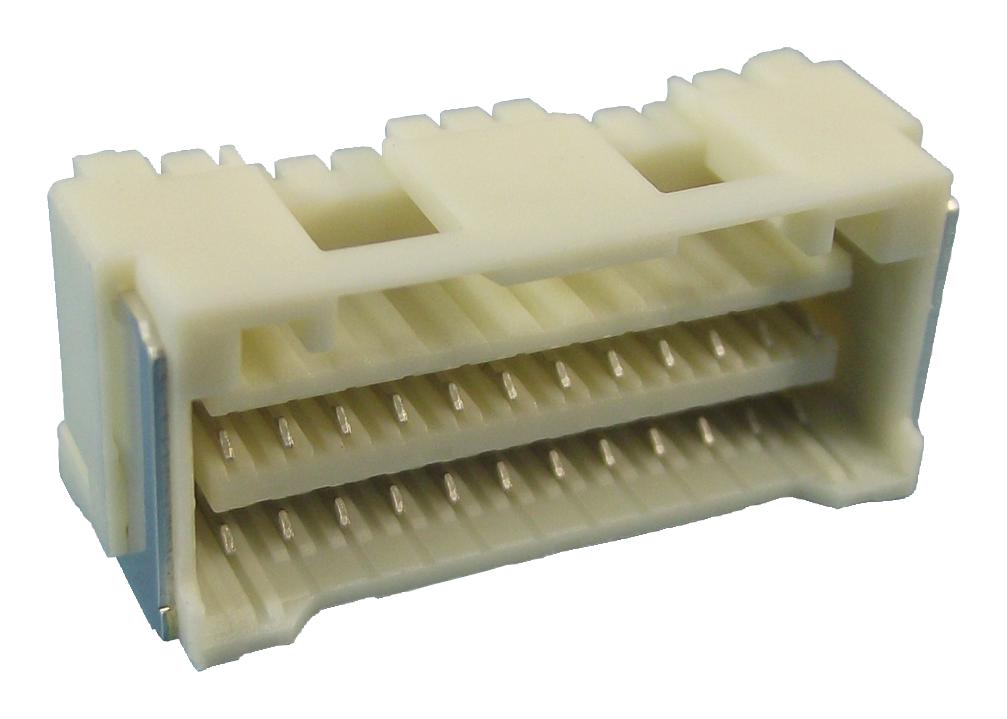

MOLEX 5031482090 Wire-to-Board Connector
The 5031482090 is a 1.50mm pitch CLIK-Mate wire-to-board PCB receptacle designed for reliable electrical connections in industrial and electronic applications. This dual-row surface-mount right-angle connector features tin plating for enhanced corrosion resistance, supports up to 20 circuits, and withstands temperature ranges from -40°C to +105°C. Constructed from durable copper alloy, it ensures long-term performance with a maximum of 20 mating cycles. Suitable for applications requiring secure termination, the connector complies with RoHS standards and offers easy mounting for efficient assembly.
MOLEX 5031482090 Wire-to-Board Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits: 20
- Color - Resin: Not specified
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Maximum Mating Cycles: 20
- Operating Temperature Range: -40°C to +105°C
- Termination Style: Surface Mount
- Current Capacity per Contact: 1.0A
- Voltage Rating: 100V
- Orientation: Right-Angle
- PCB Thickness - Recommended: Not specified
- Durability: Supports up to 20 mating cycles
- RoHS: Compliant
- Halogen-Free: Not Low-Halogen
- RoHS Certificate: Yes
Buy the Molex 5031482090 – Reliable Wire-to-Board Connectors for Industrial Applications
Enhance your electronic assemblies with the Molex 5031482090 wire-to-board connector. Featuring a 1.50mm pitch, dual-row design, and tin plating, this surface-mount, right-angle connector guarantees reliable connectivity and robust performance in demanding industrial environments. Rated for up to 1.0A and 100V, it withstands temperatures from -40°C to +105°C, offers up to 20 mating cycles, and is RoHS compliant. Ideal for compact, high-reliability applications, it simplifies assembly and ensures long-lasting connections for your industrial electronics.
Order your Molex 5031482090 Series CLIK-Mate connector today and ensure dependable, secure connections for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 5031482090?
You can click on the BUY or RFQ button to purchase 5031482090 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5031482090?
You can download the 5031482090 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5031482090?
MOLEX
